Thumb Rings by Vermil Archery

| Victory | Lotus II | Classic | Metal Victory | Metal Lotus II | Metal Classic |

We are proud to collaborate with Vermil Archery (based in Thailand) to bring you the next generation of rings. Vermil resin rings are a great introductory ring available in 9 different sizes (please measure the dimensions of your thumb using calipers and consult the Vermil sizing charts below).

For those looking for a premium, long-lasting option, the Vermil Victory, Lotus II, and Classic made with various metal finishes including Brass, Bronze, and Silver+. Different sizes are available, though molds are slightly different, so please consult the size charts.

Finally, new to the line-up are the custom-sized Qing/Manchu cylindrical rings made from a durable biocomposite plastic.


Vermil Manchu

Vermil's Qing/Manchu ring is a cylindrical constructed from a durable biocomposite material. Each ring is custom made to fit your thumb's specific dimensions, so please be sure to carefully follow their measurement procedure when you order your ring. Please visit this page to orders yours today!

Materials: Biocomposite plastic
Base price (minus shipping): $25
How to order: Visit this order form

Click here to order your Vermil Manchu ring.

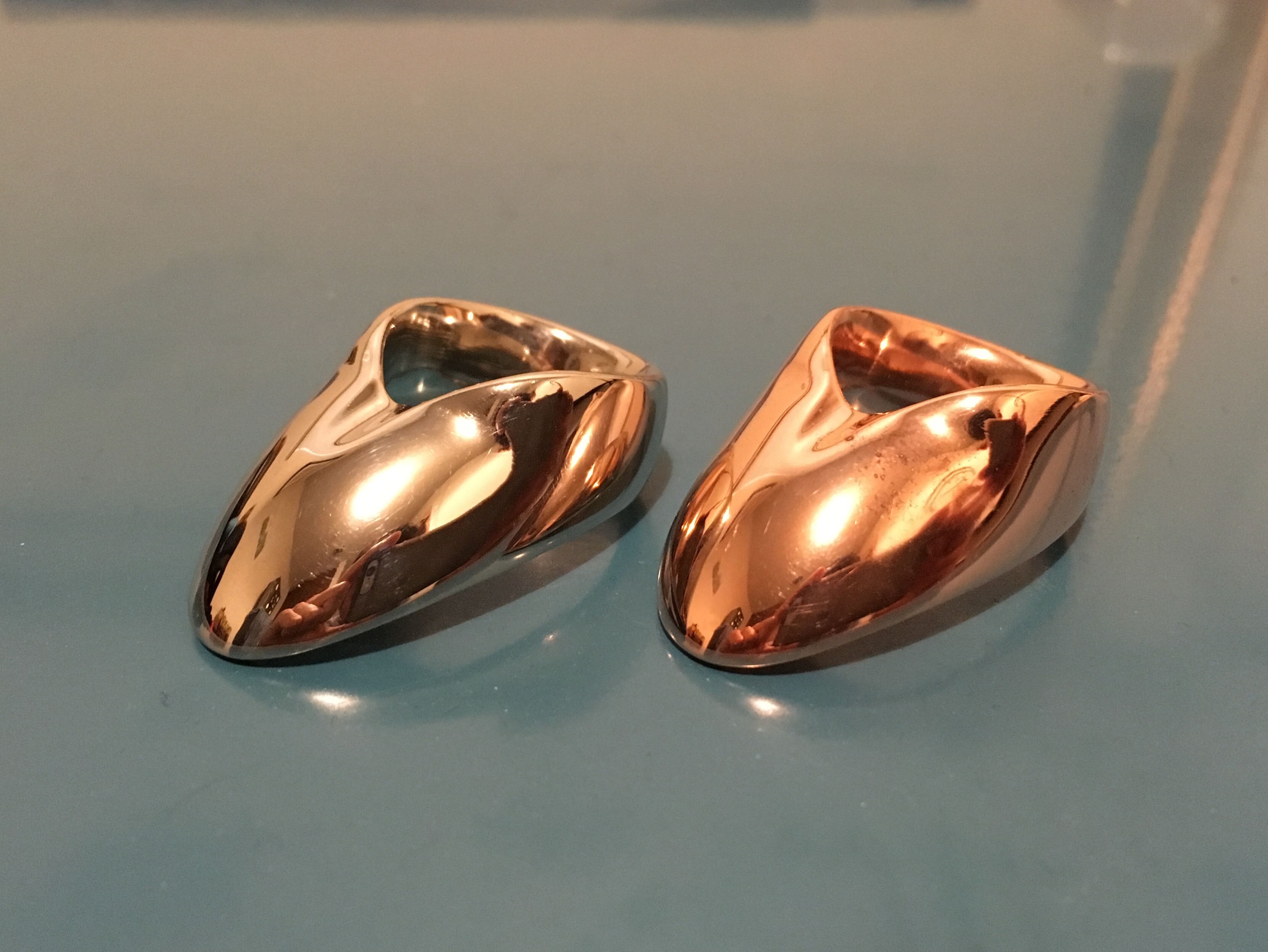

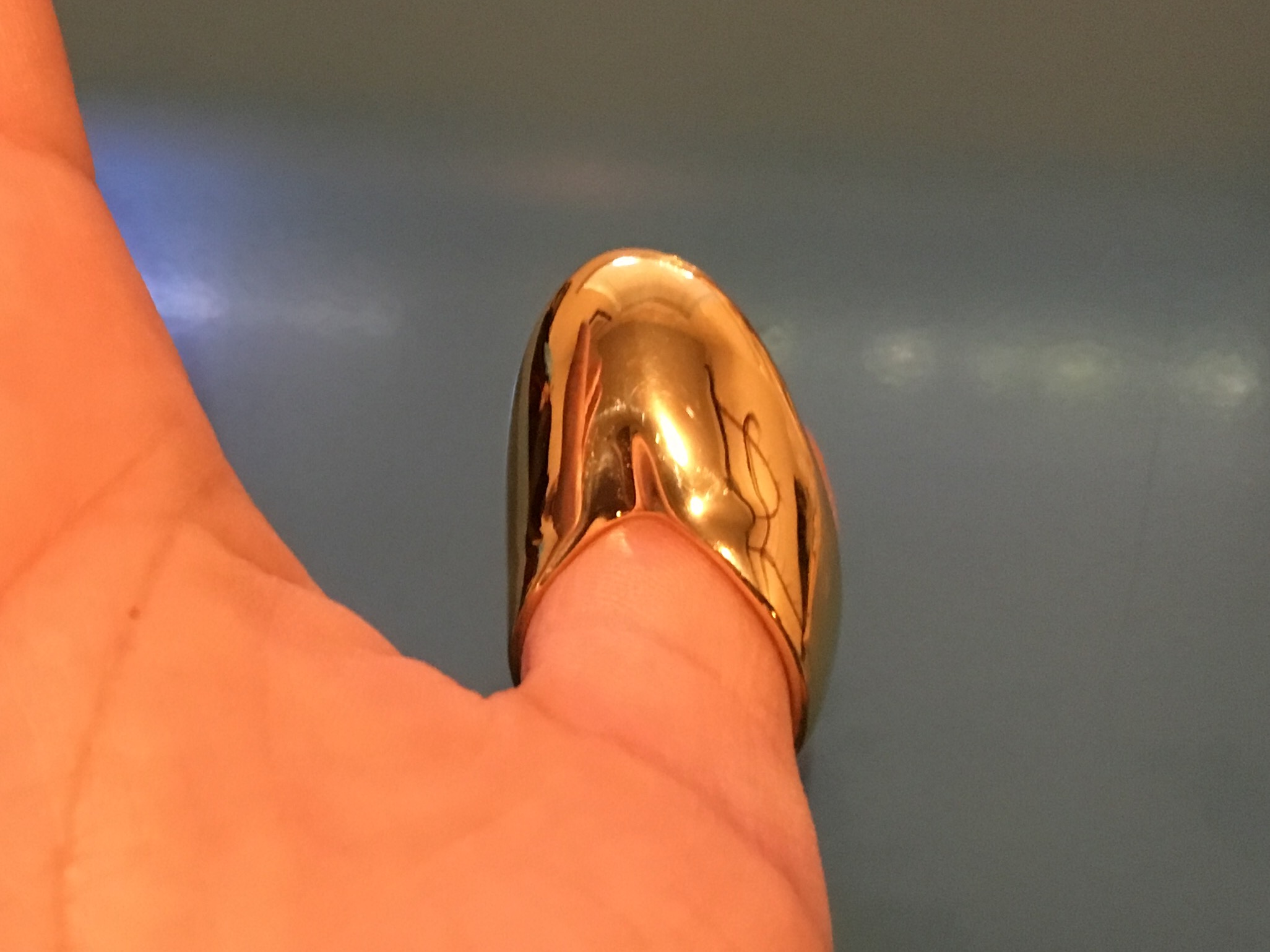

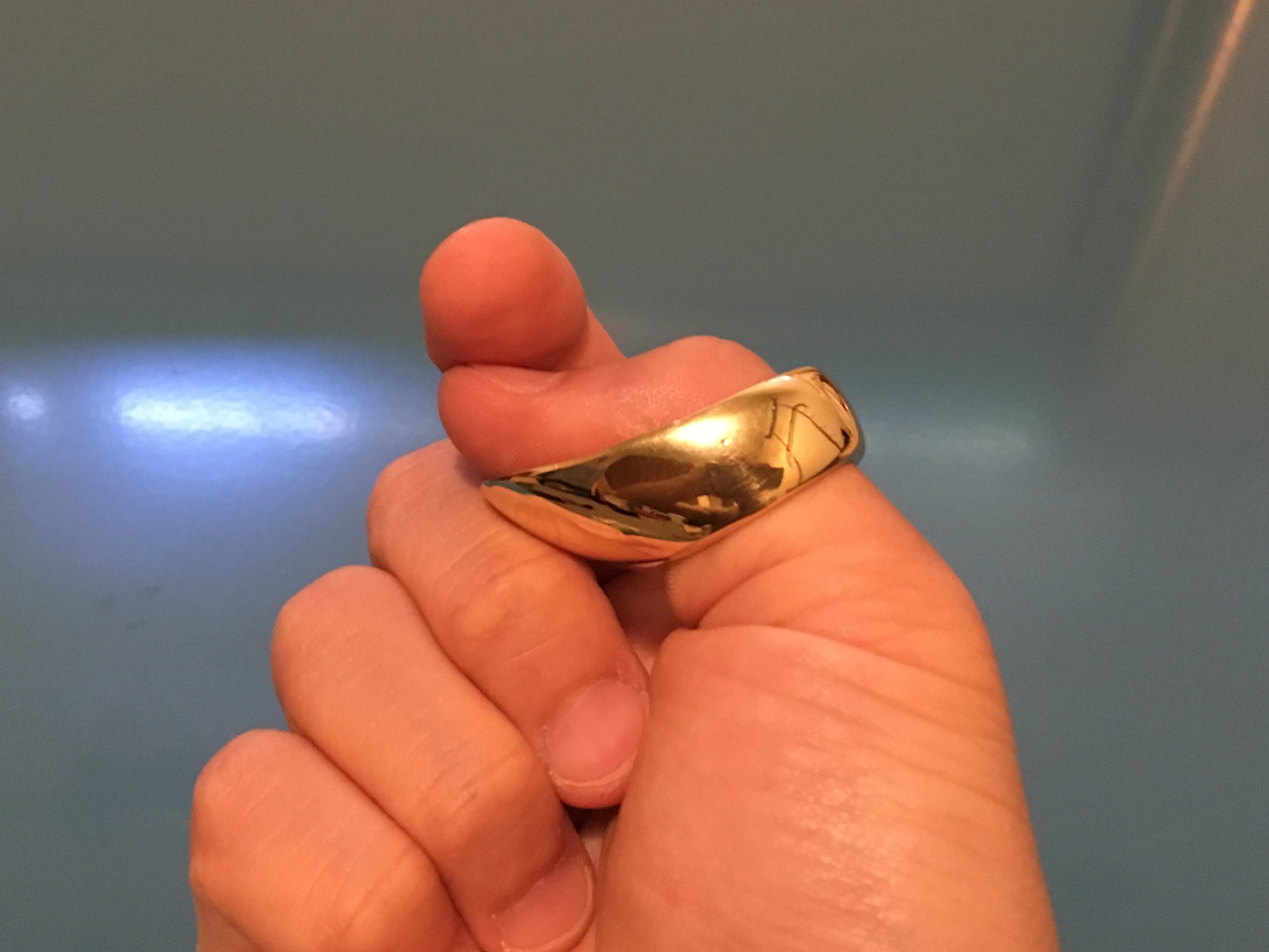

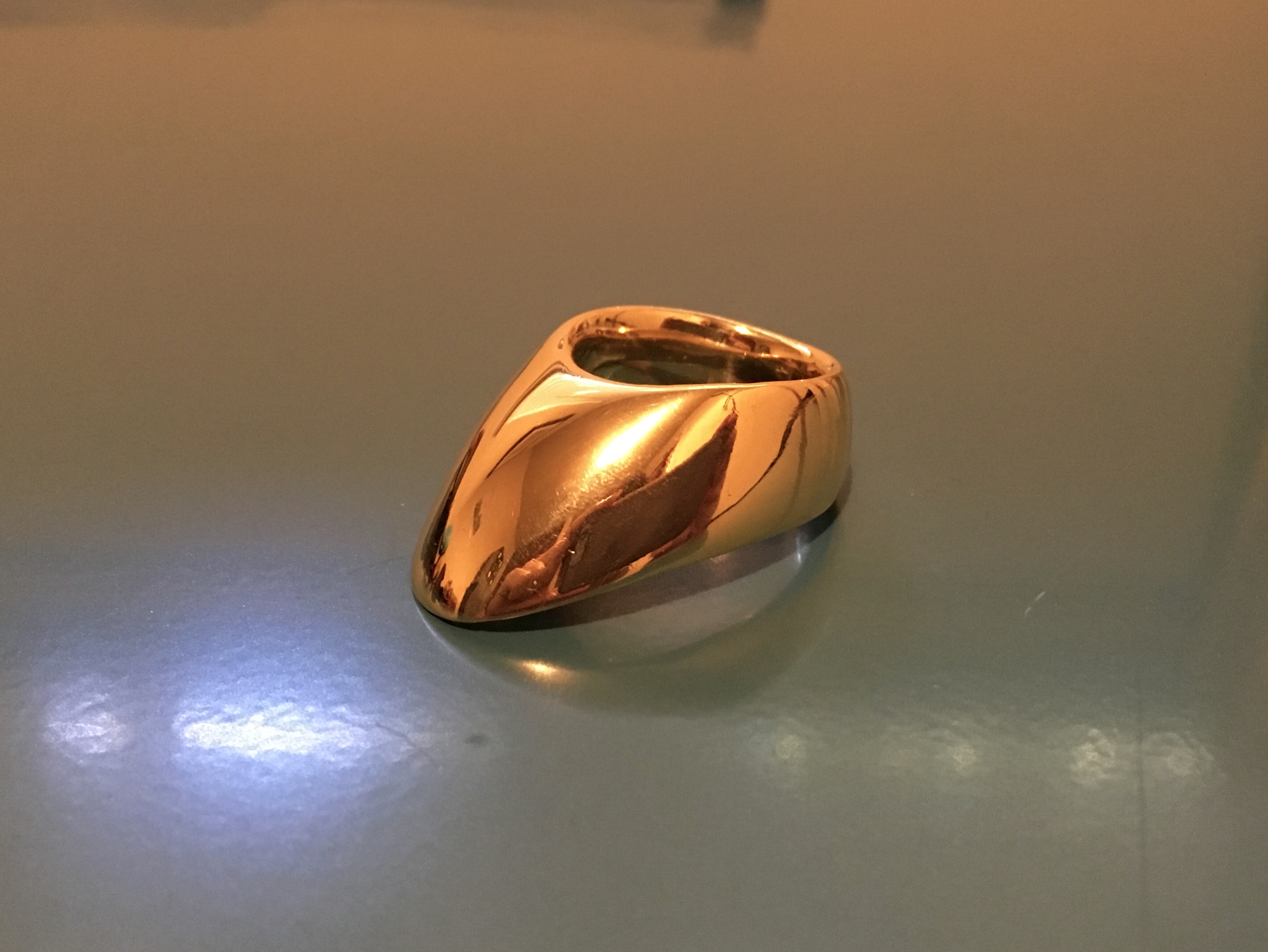

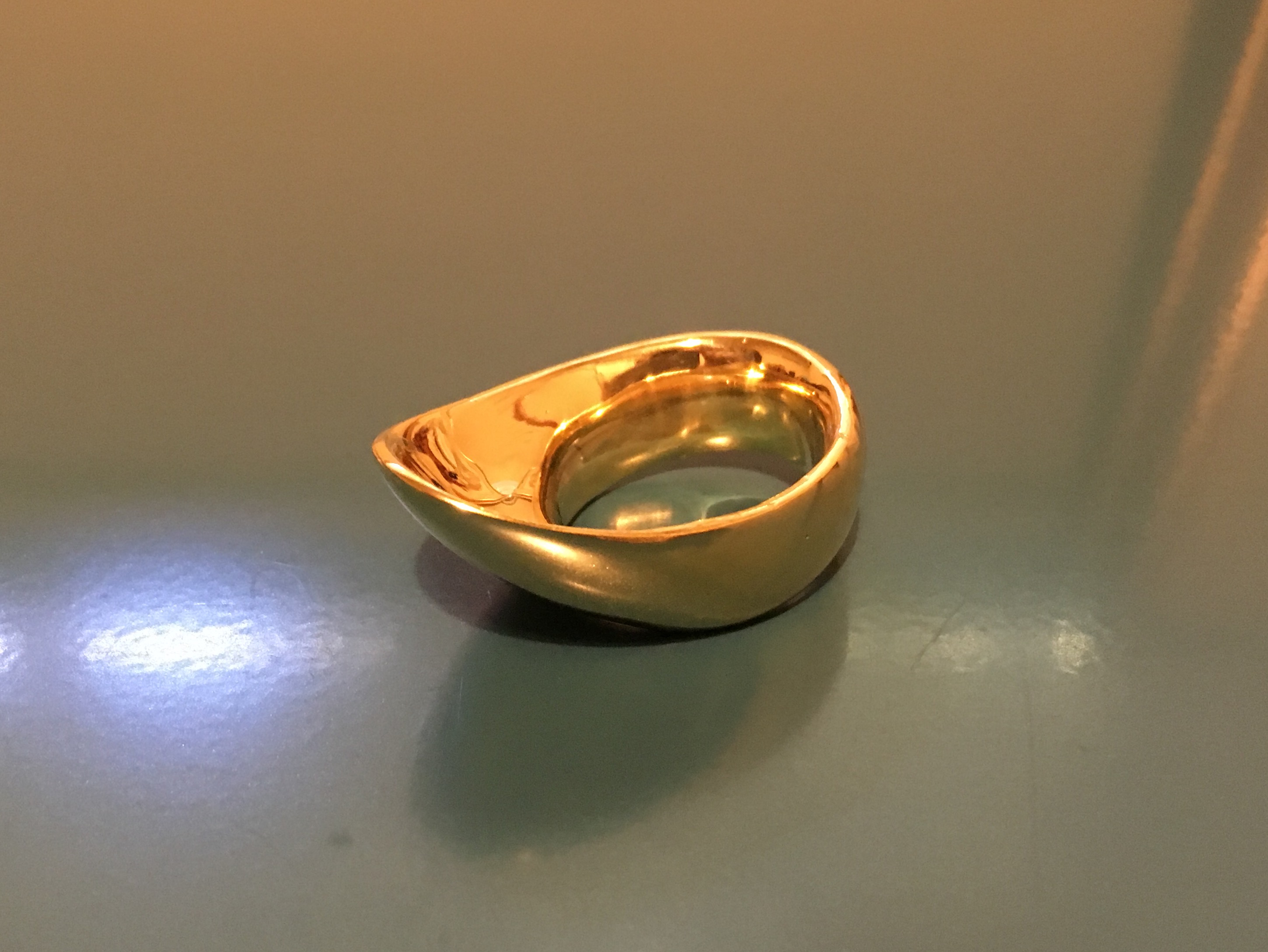

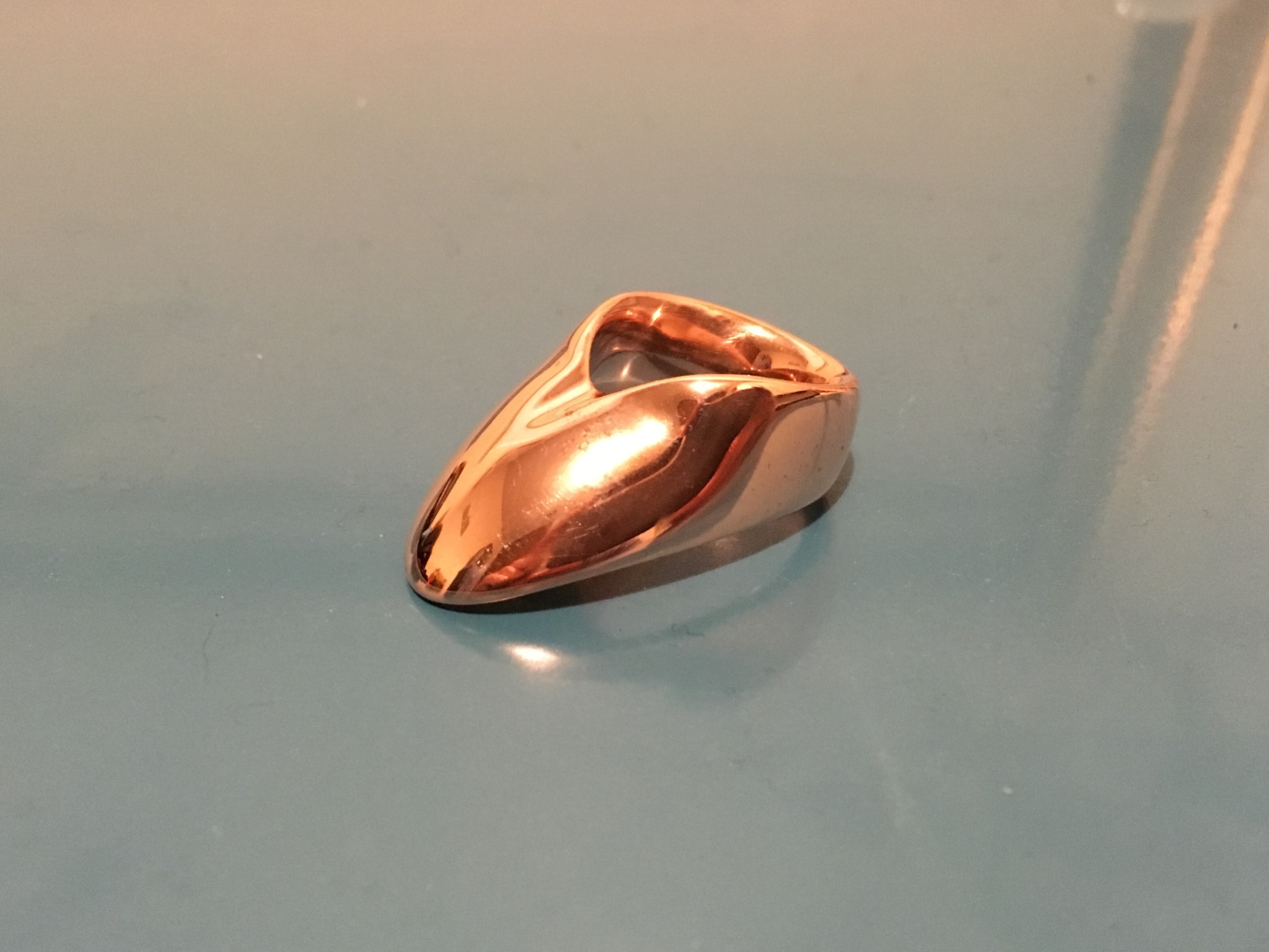

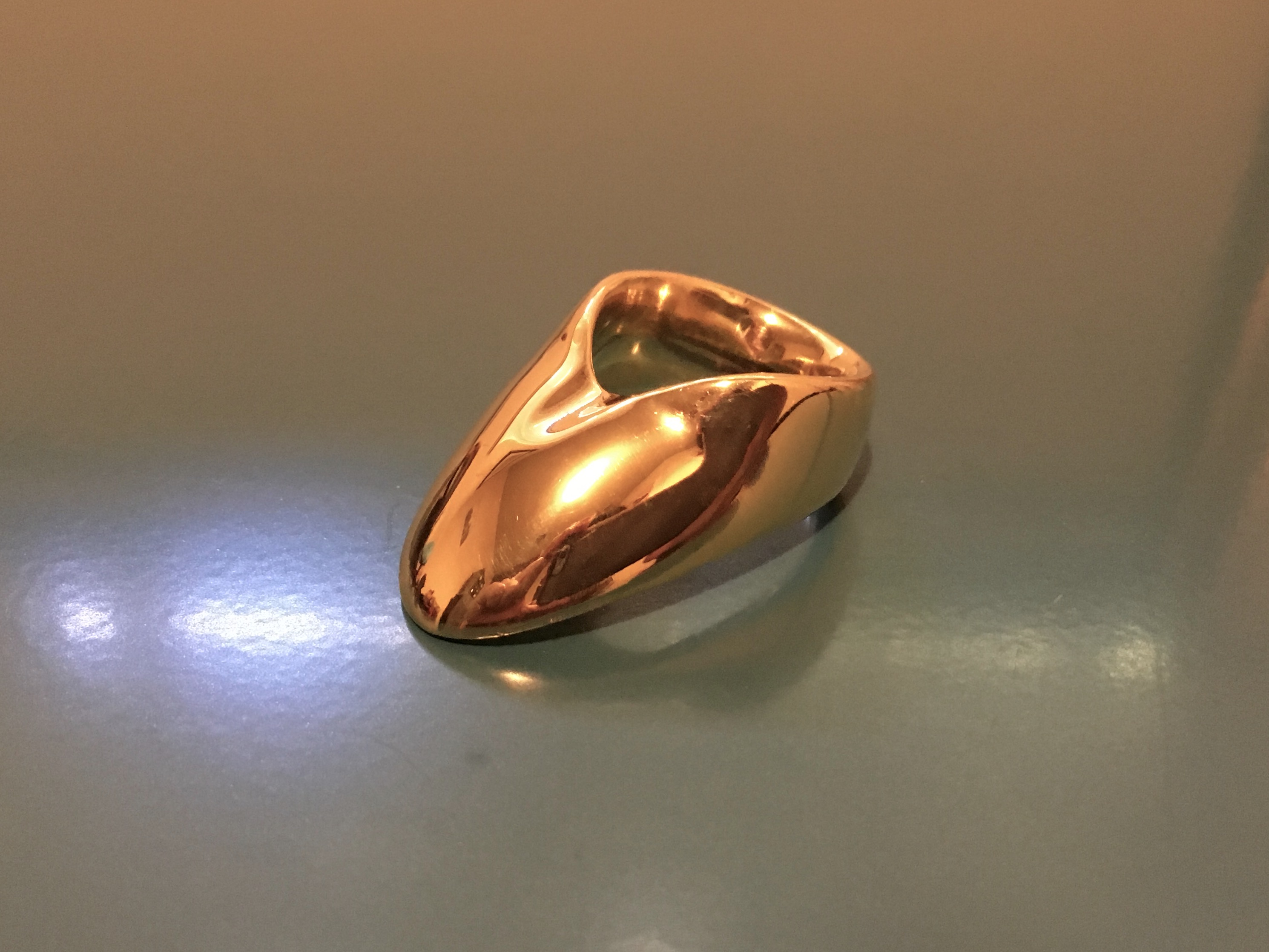

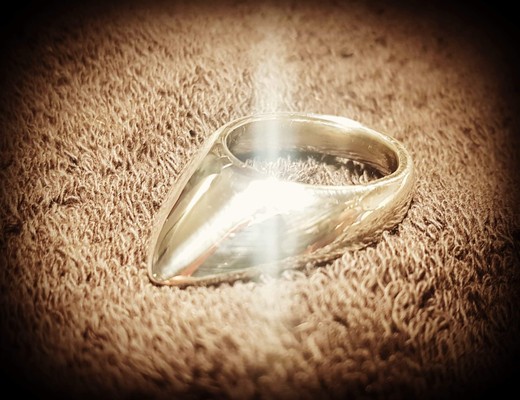

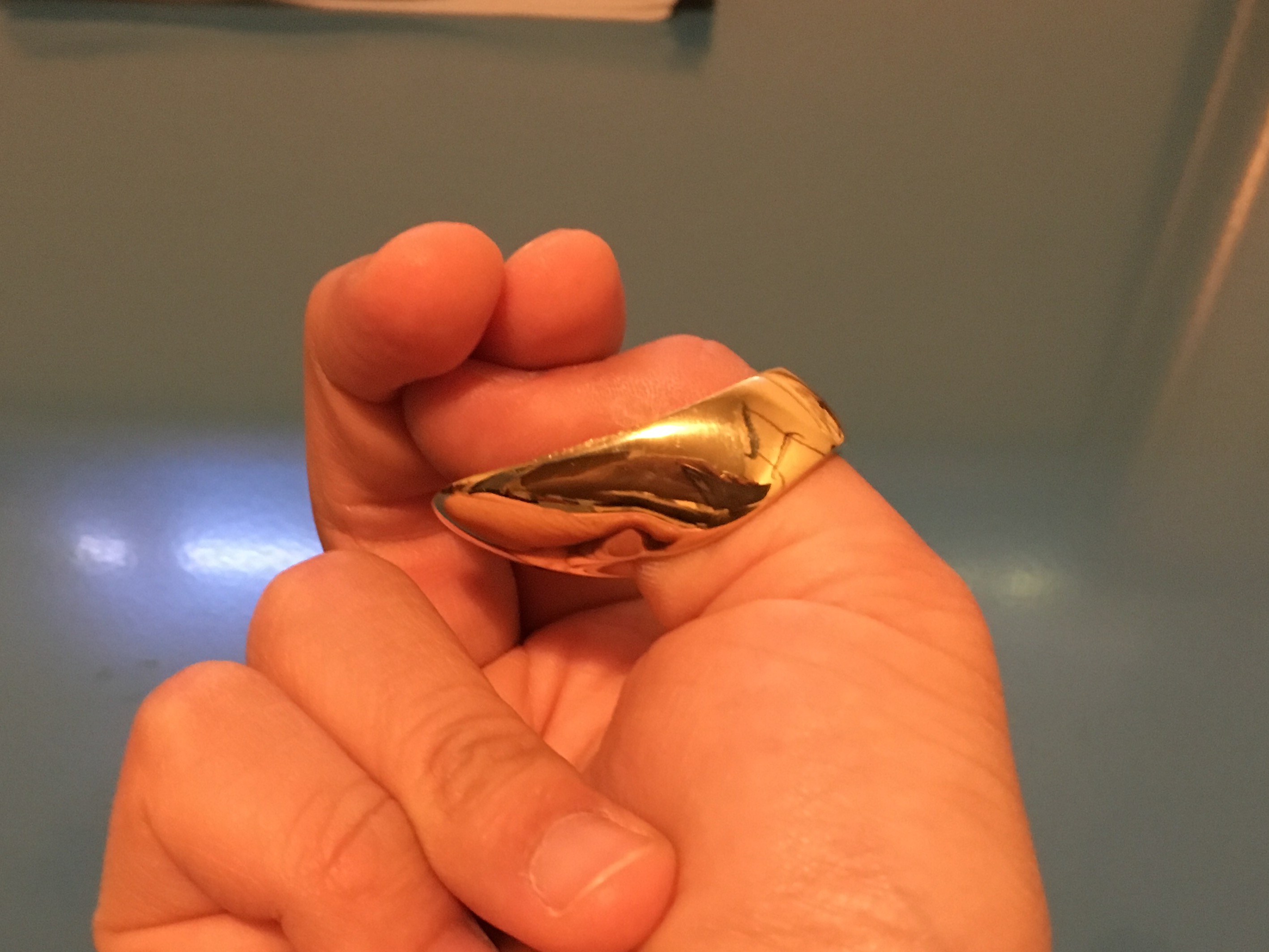

Metal Vermil Victory

The Victory is now available in metal. Note that the sizes of the opening are somewhat different from the Vermil resin ring sizes, so please measure carefully and consult the chart below.

Materials: Brass ($35), Bronze ($40), Silver+ ($45)
Shipping: $6, small flat-rate box within USA (International: starts at $7 for 2-ounce padded envelope)


Metal Victory Sizes
Opening width x length
Size 16
16 mm x 19 mm
Size 17
17 mm x 20 mm
Size 18
18 mm x 20.5 mm
Size 19
19 mm x 21 mm
Size 20
20 mm x 23 mm
Size 21
21 mm x 24 mm
Size 22
22 mm x 24.5 mm
Size 23
23 mm x 26.5 mm

(Note: size tolerance is +/- 0.3mm.)

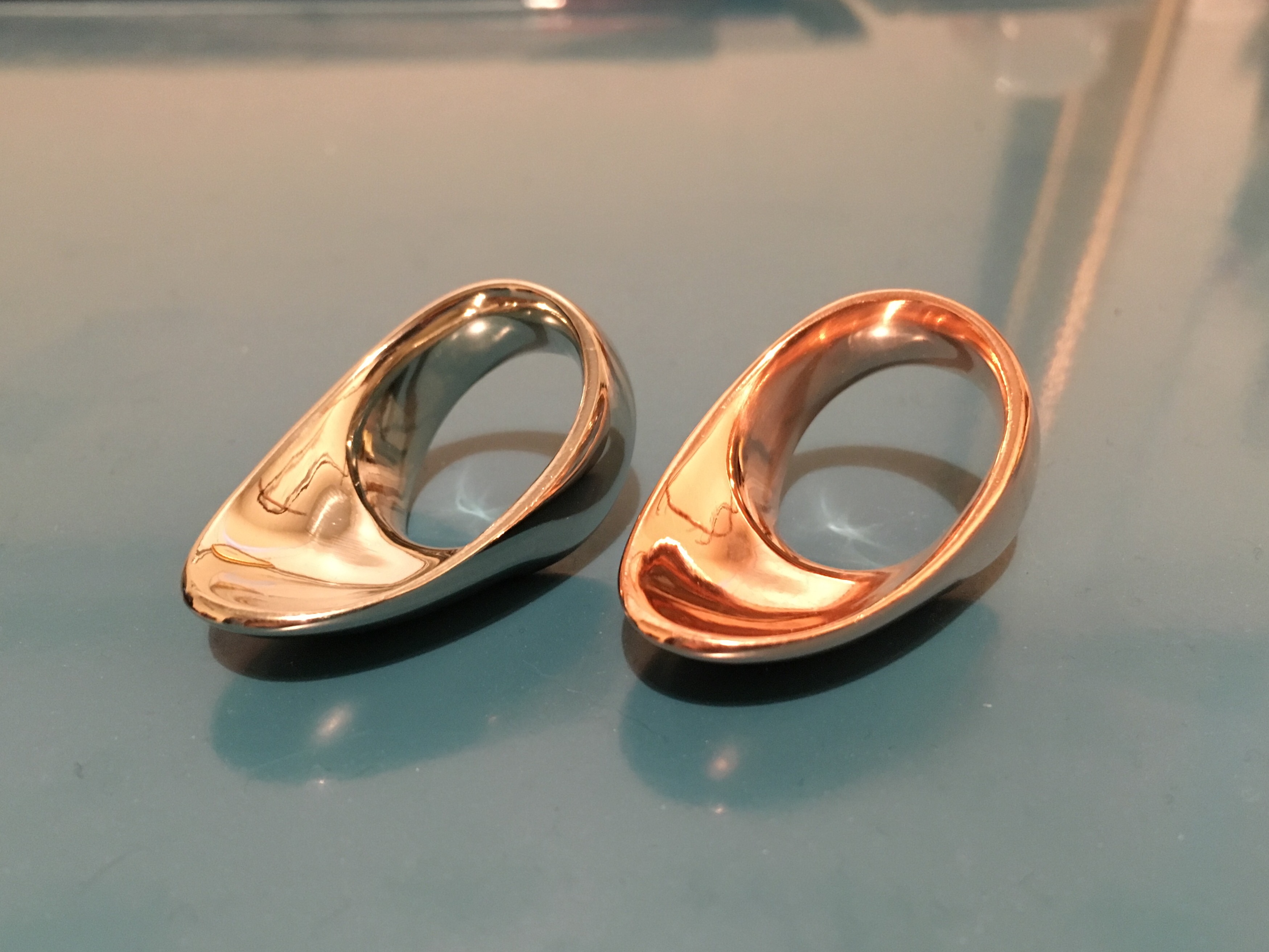

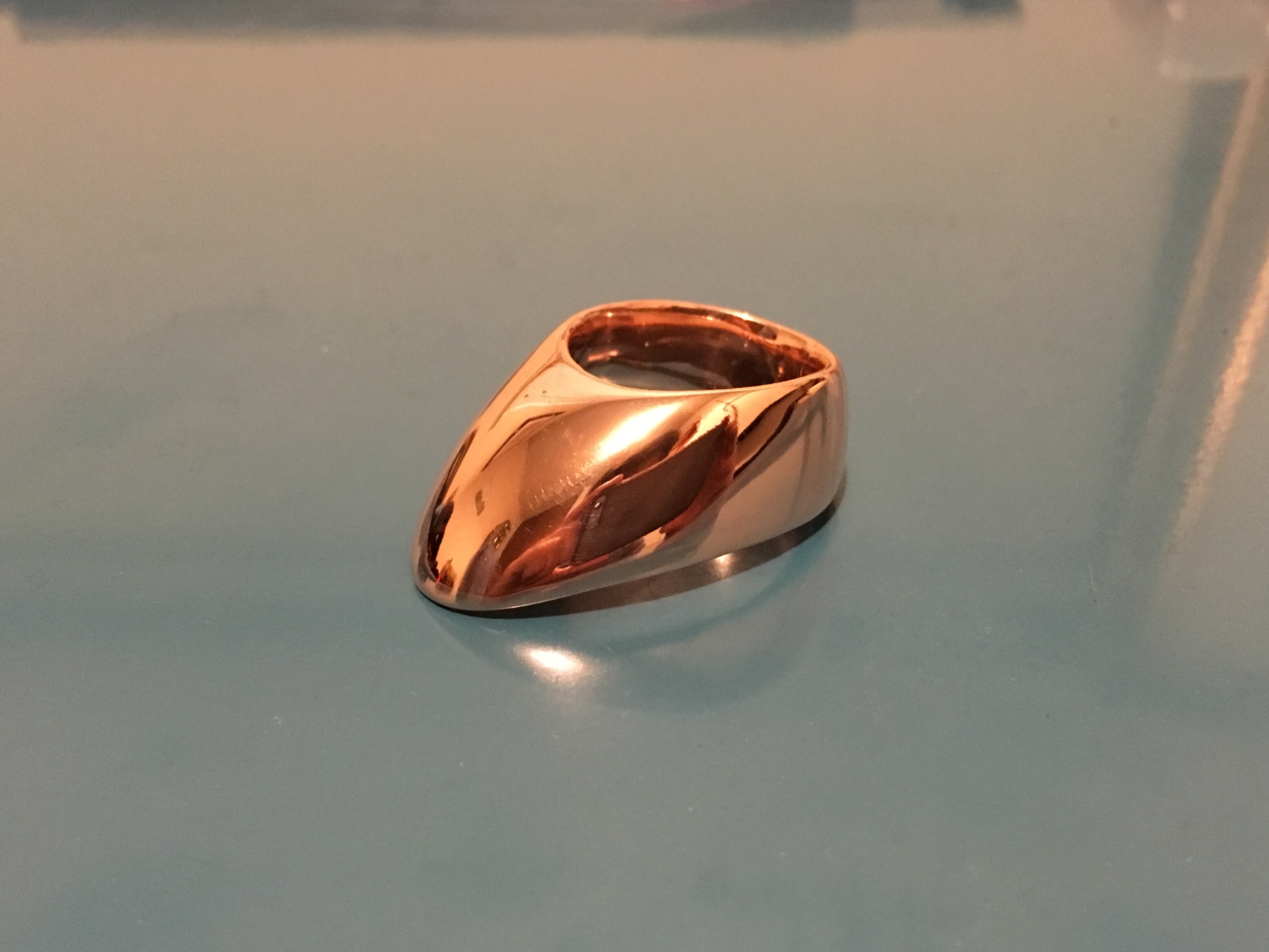

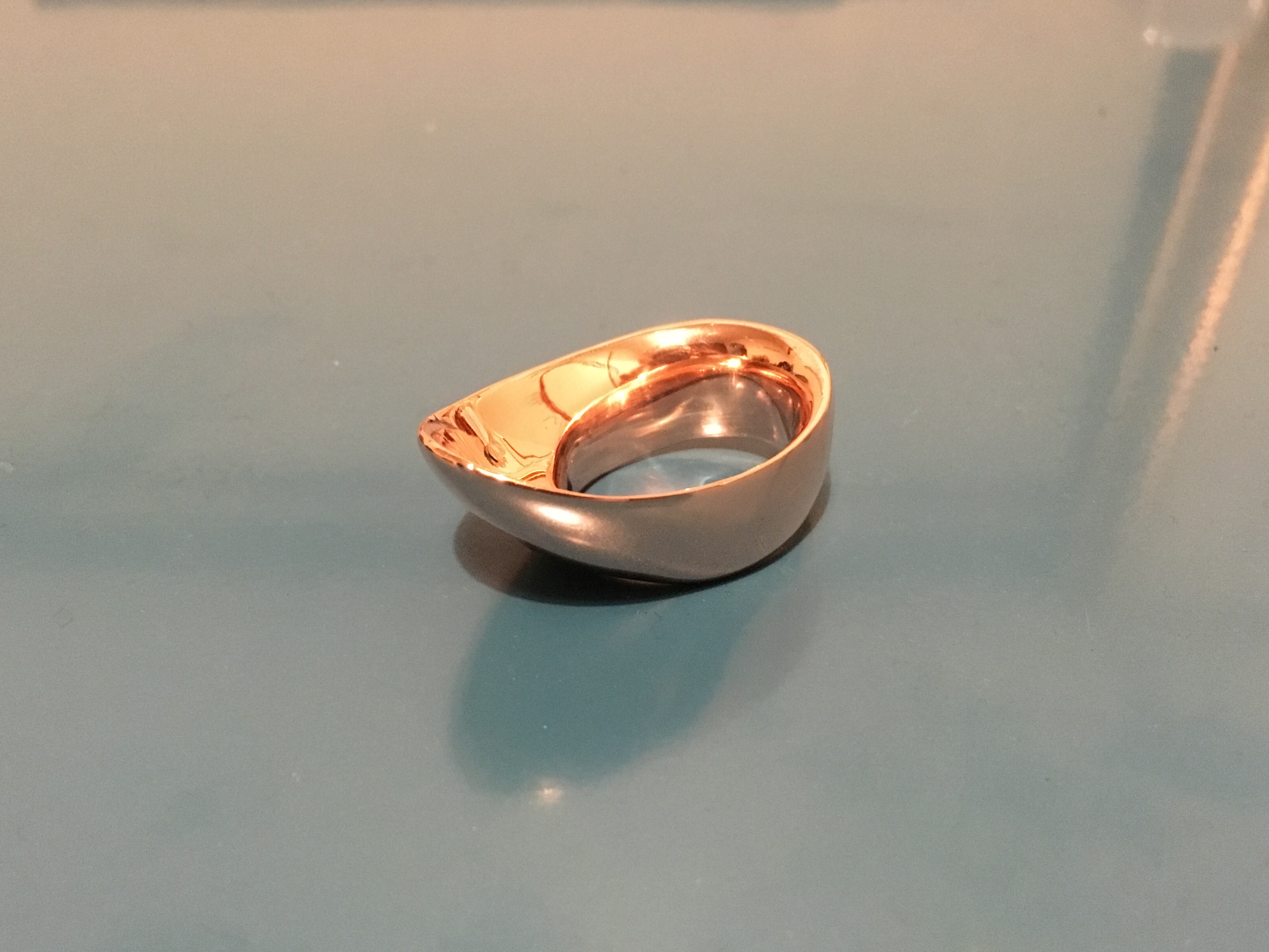

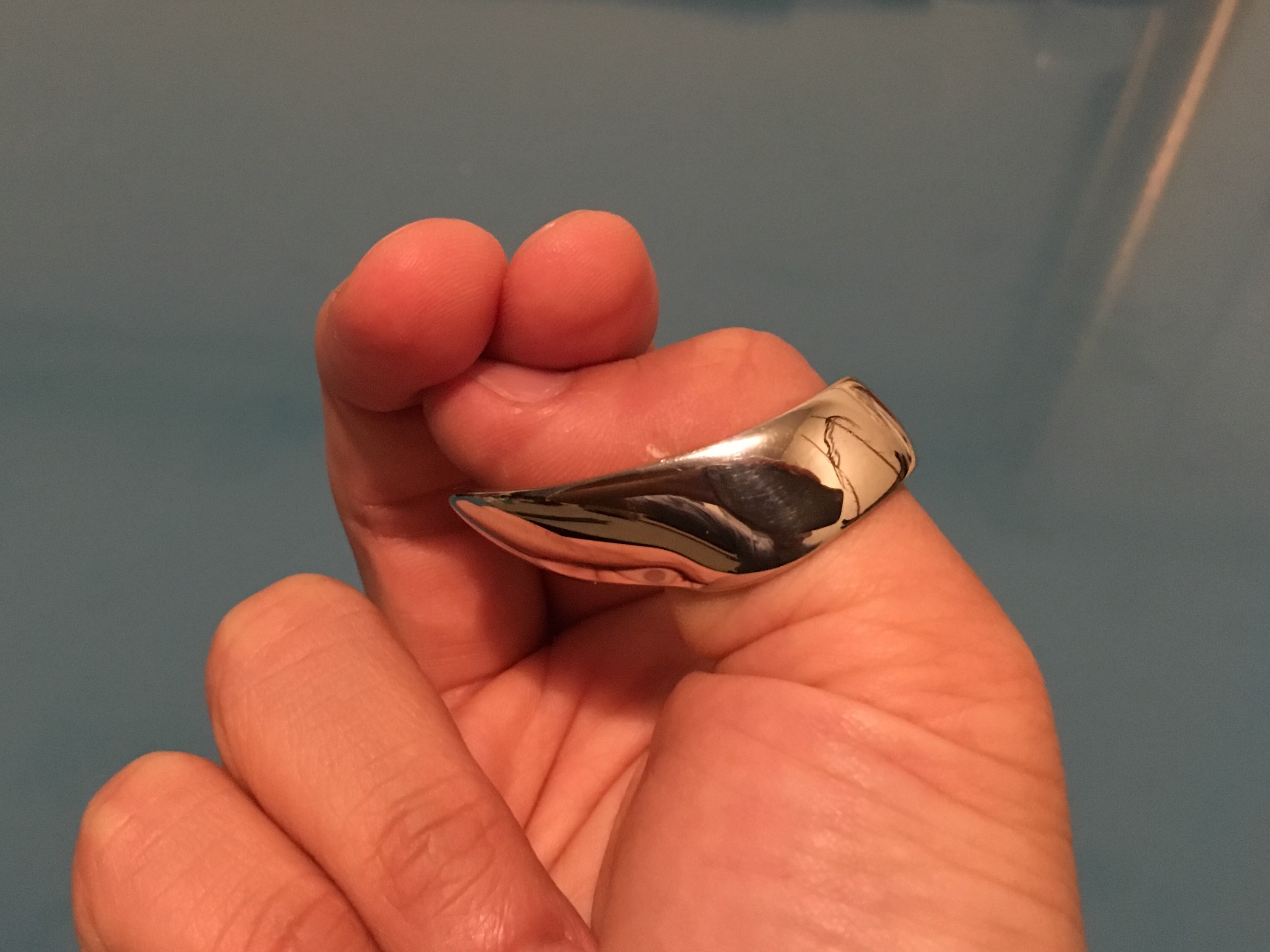

Metal Vermil Lotus II

The Lotus II is now available in metal. Note that the sizes of the opening are somewhat different from the Vermil resin ring sizes, so please measure carefully and consult the chart below.

Materials: Brass ($35), Bronze ($40), Silver+ ($45)
Shipping: $6, small flat-rate box within USA (International: starts at $7 for 2-ounce padded envelope)


Metal Lotus II Sizes
Opening width x length
Size 16
16 mm x 19 mm
Size 17
17 mm x 20 mm
Size 18
18.5 mm x 21 mm
Size 19
19.5 mm x 22.5 mm
Size 20
20.5 mm x 23.5 mm
Size 21
21.5 mm x 24.5 mm
Size 22
22.5 mm x 25.5 mm

(Note: size tolerance is +/- 0.3mm.)

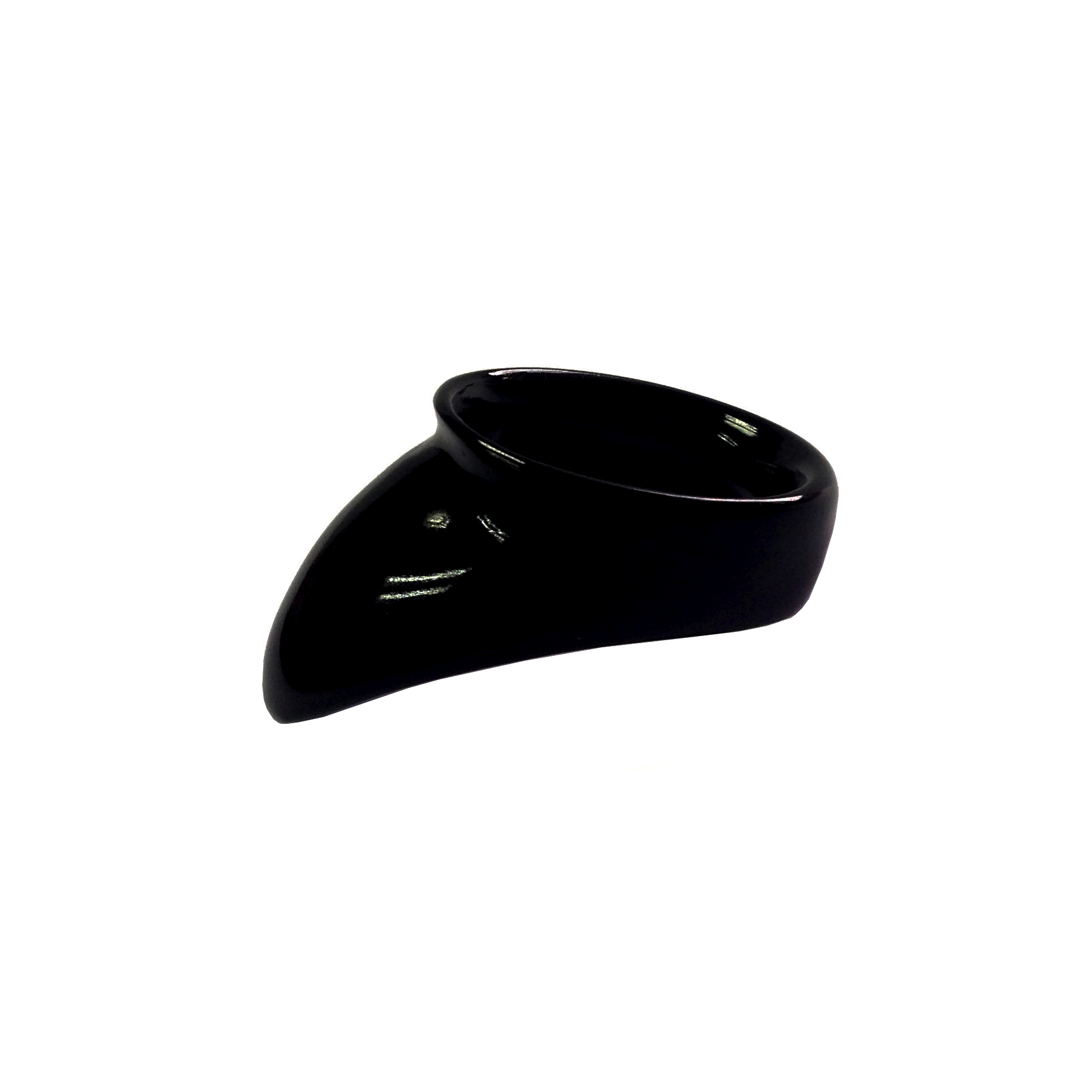

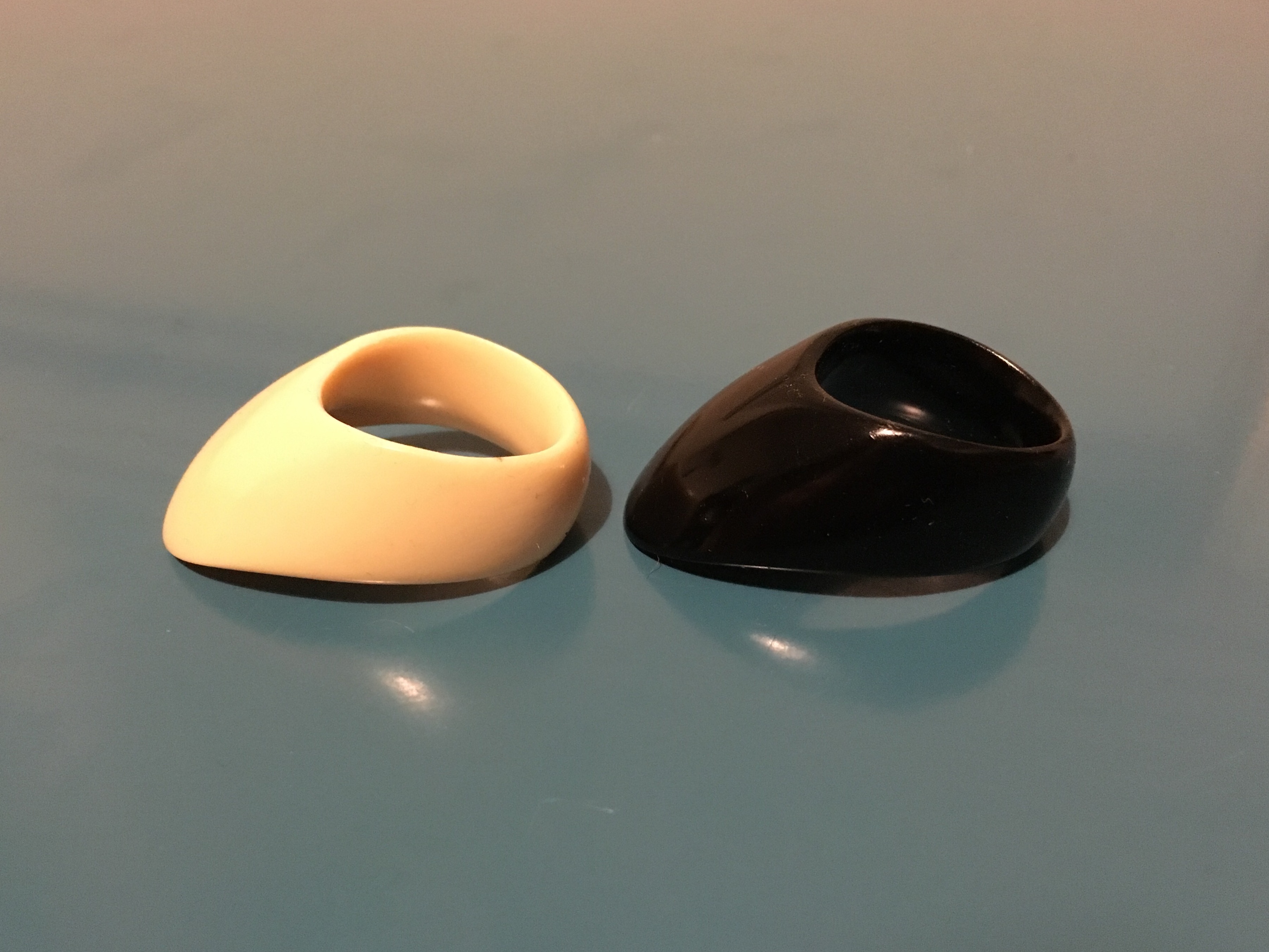

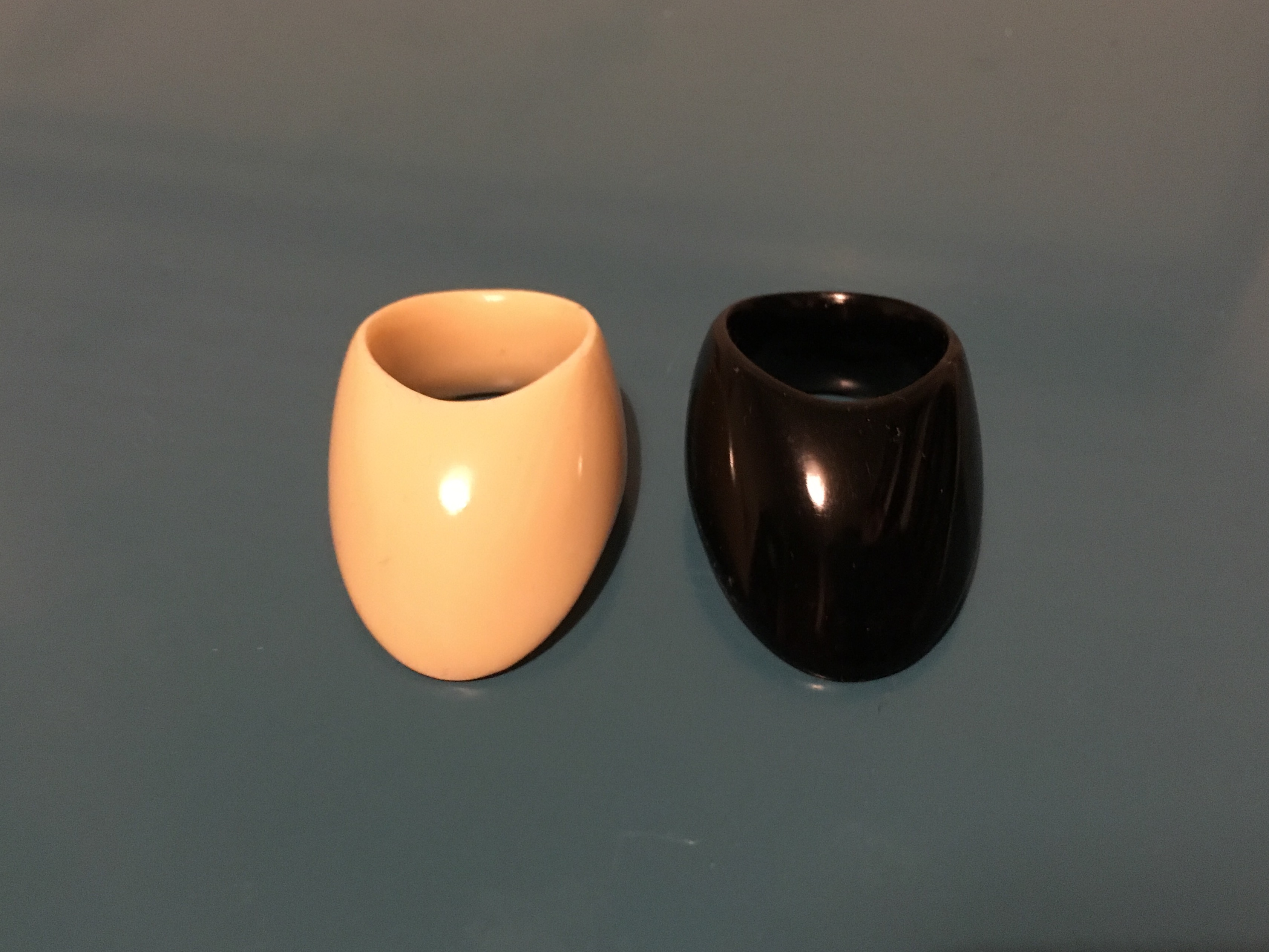

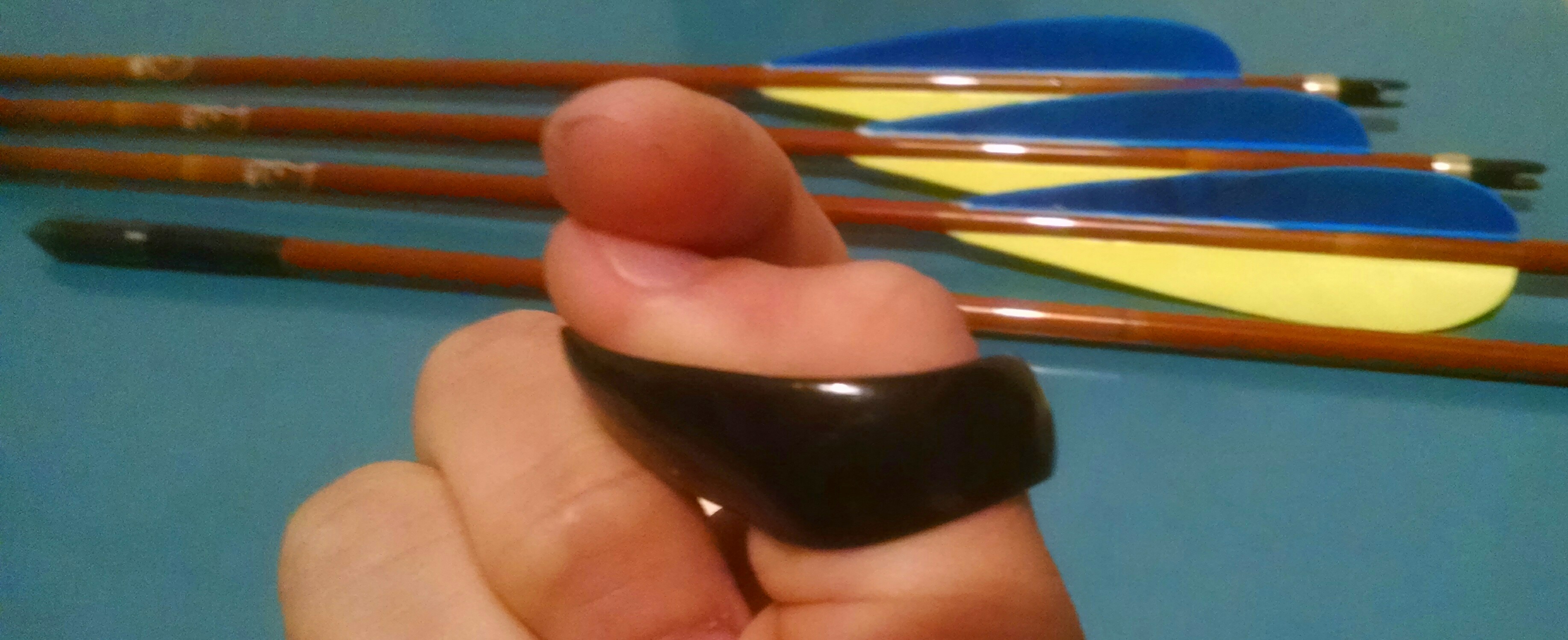

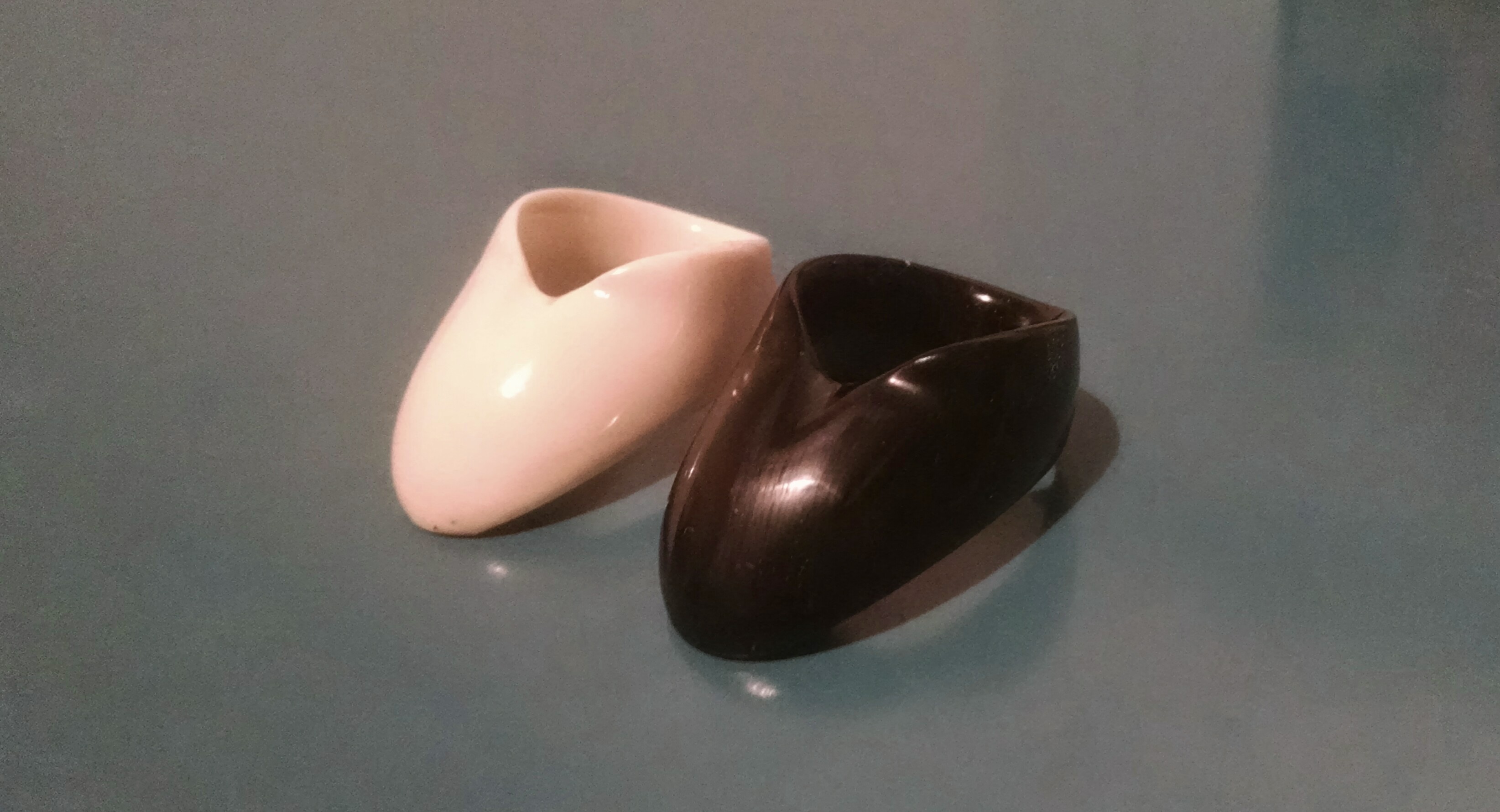

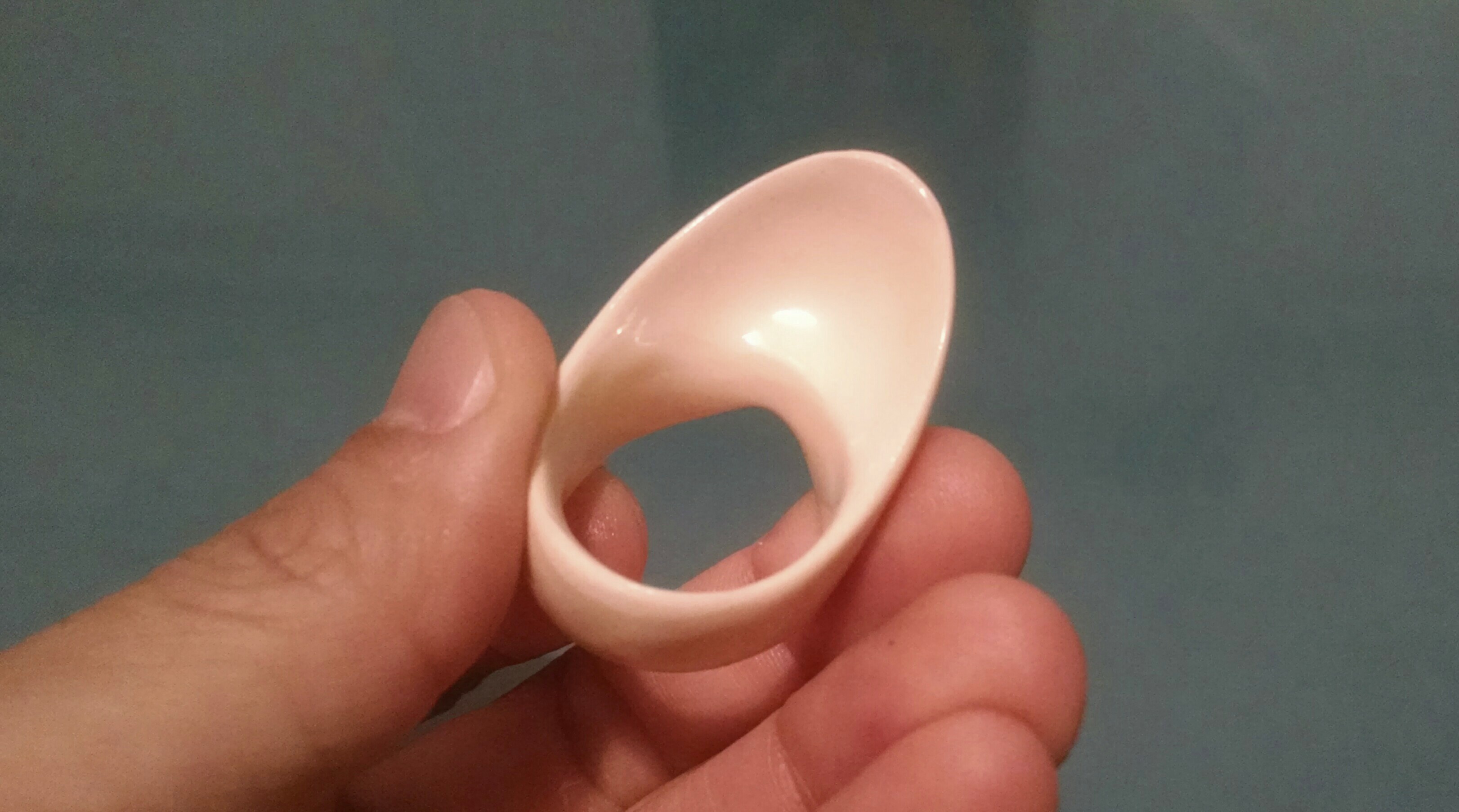

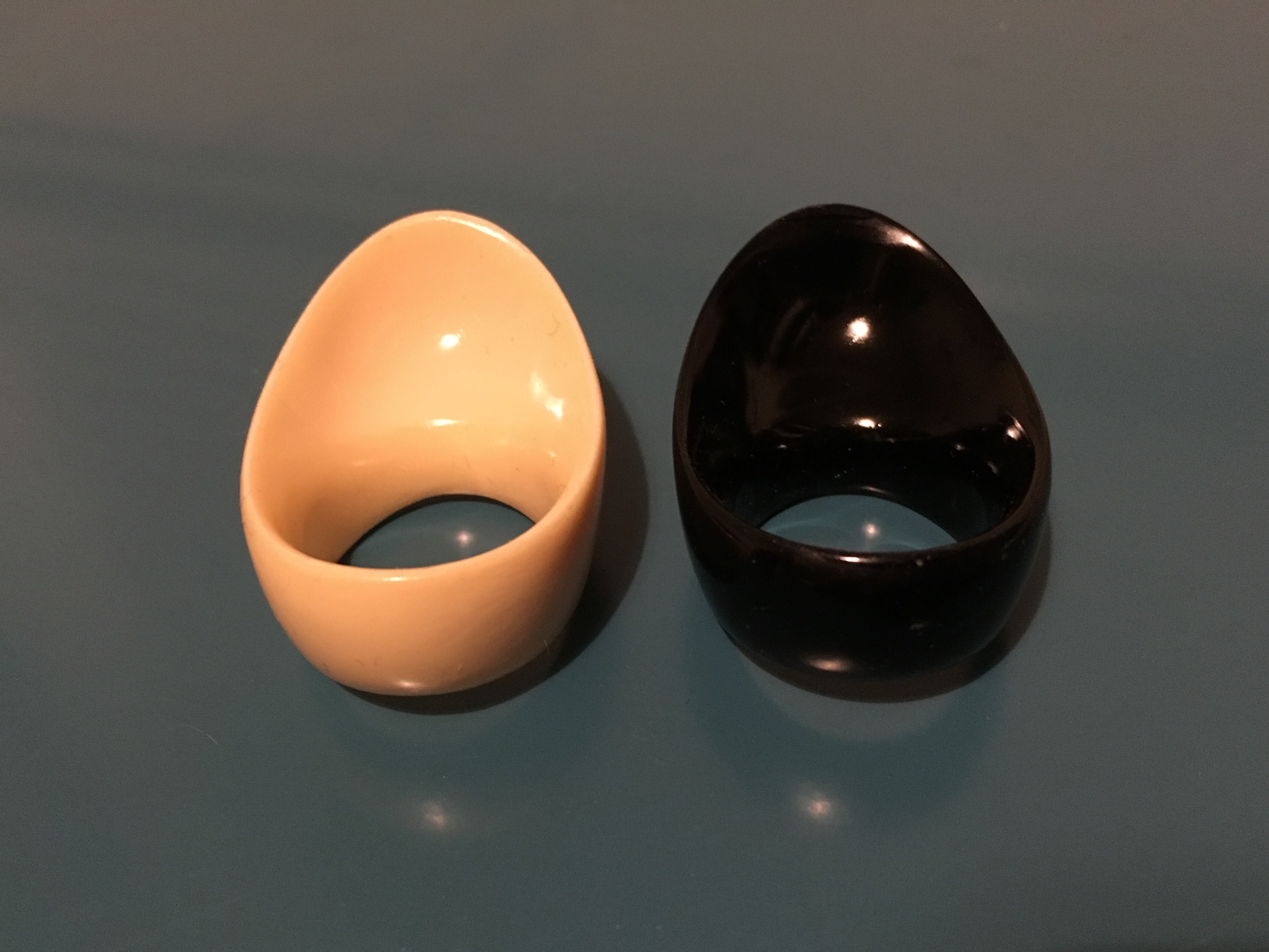

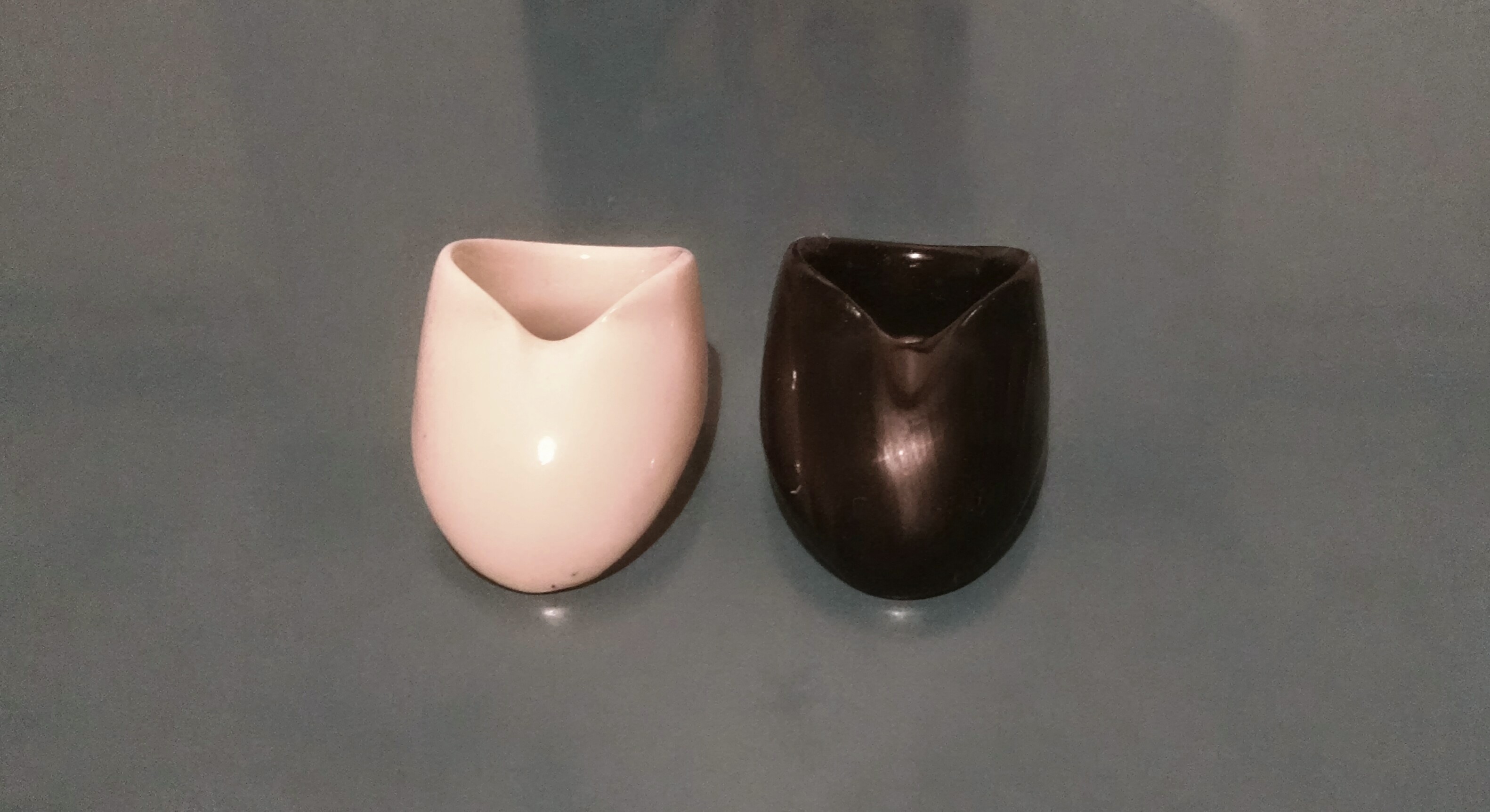

Vermil Victory

The Victory is a 3rd-generation ring designed in collaboration with The Cinnabar Bow. Its lip is thinner than other models, allowing for more space between the string and the palm, as well as more coverage of your thumb pad. The Victory also has a pinch-free, two-pronged guard, which gives your thumb joint more room to bend and provides a more stable hold on the string (the string rests across the dimple, which mitigates unintentional up/down rolling).

Materials/Colors: Resin (Black, Ivory)
Price (Resin): $15 per ring
Shipping: $6, small flat-rate box within USA (International: starts at $7 for 2-ounce padded envelope)


Resin Victory Sizes
Opening width x length
Size 15
15 mm x 18 mm
Size 16
16 mm x 19 mm
Size 17
17 mm x 20 mm
Size 18
18 mm x 20.5 mm
Size 19
19 mm x 21 mm
Size 20
20 mm x 23 mm
Size 21
21 mm x 24 mm
Size 22
22 mm x 25 mm
Size 23
23 mm x 26 mm
Size 24
24 mm x 27 mm

(Note: size tolerance is +/- 0.5mm.)

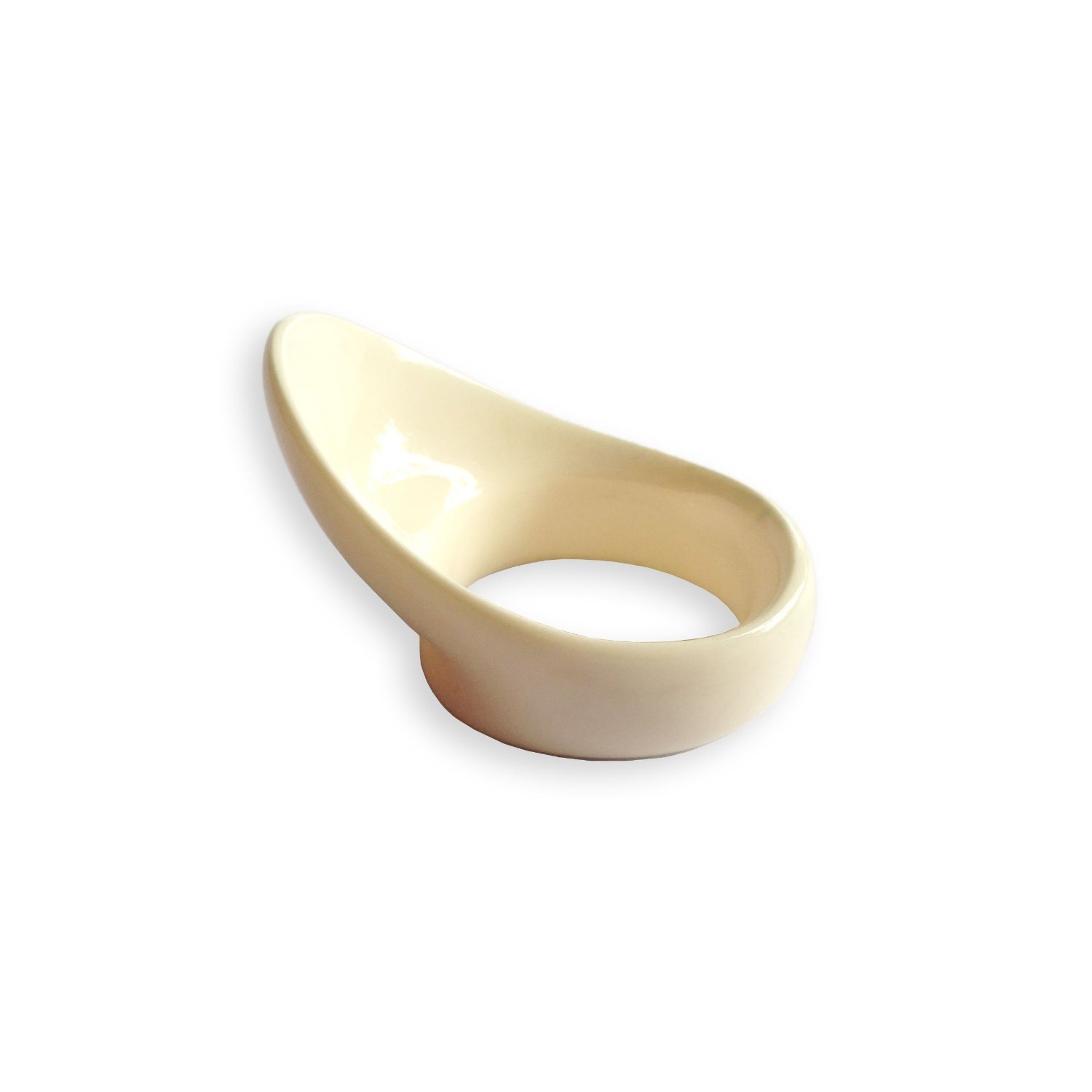

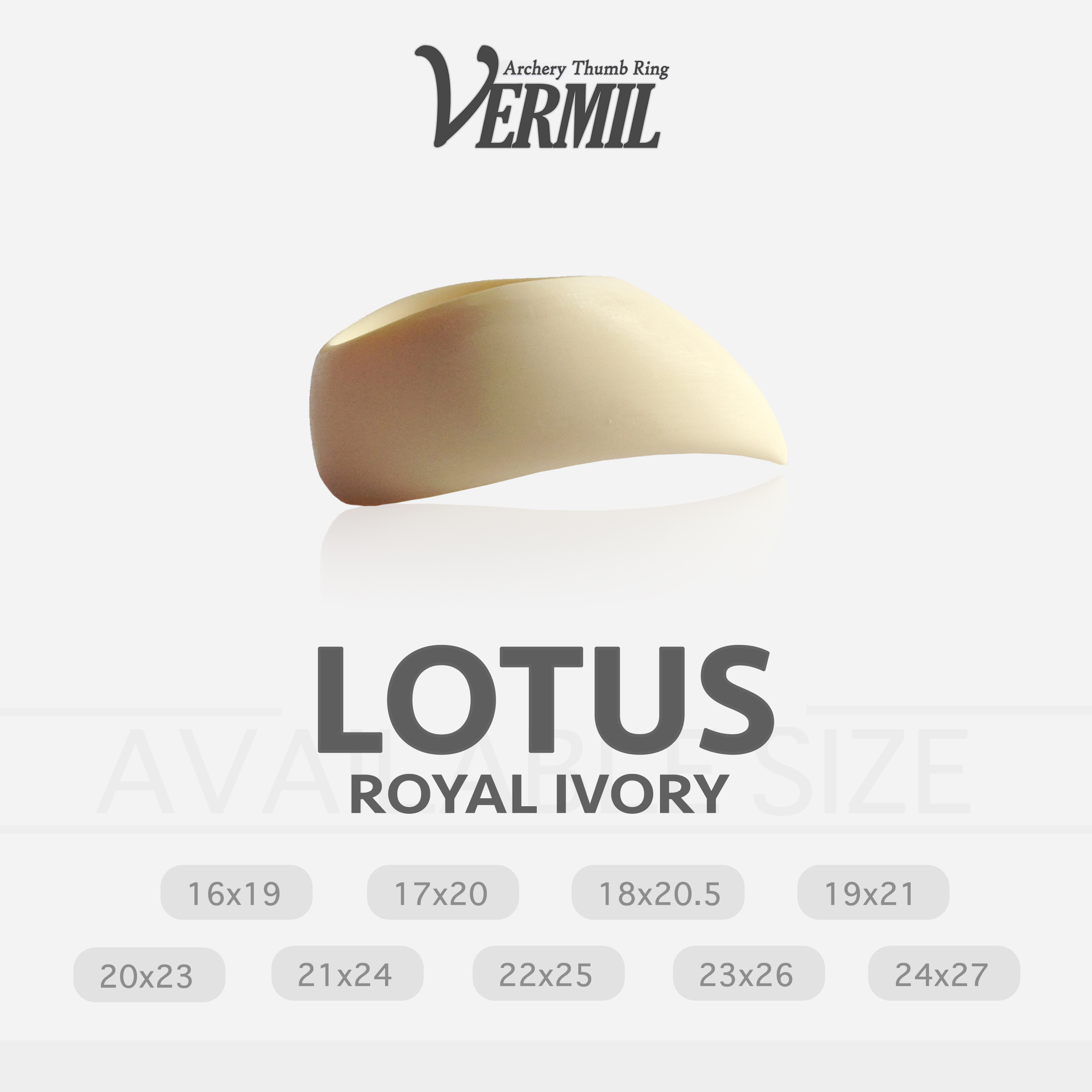

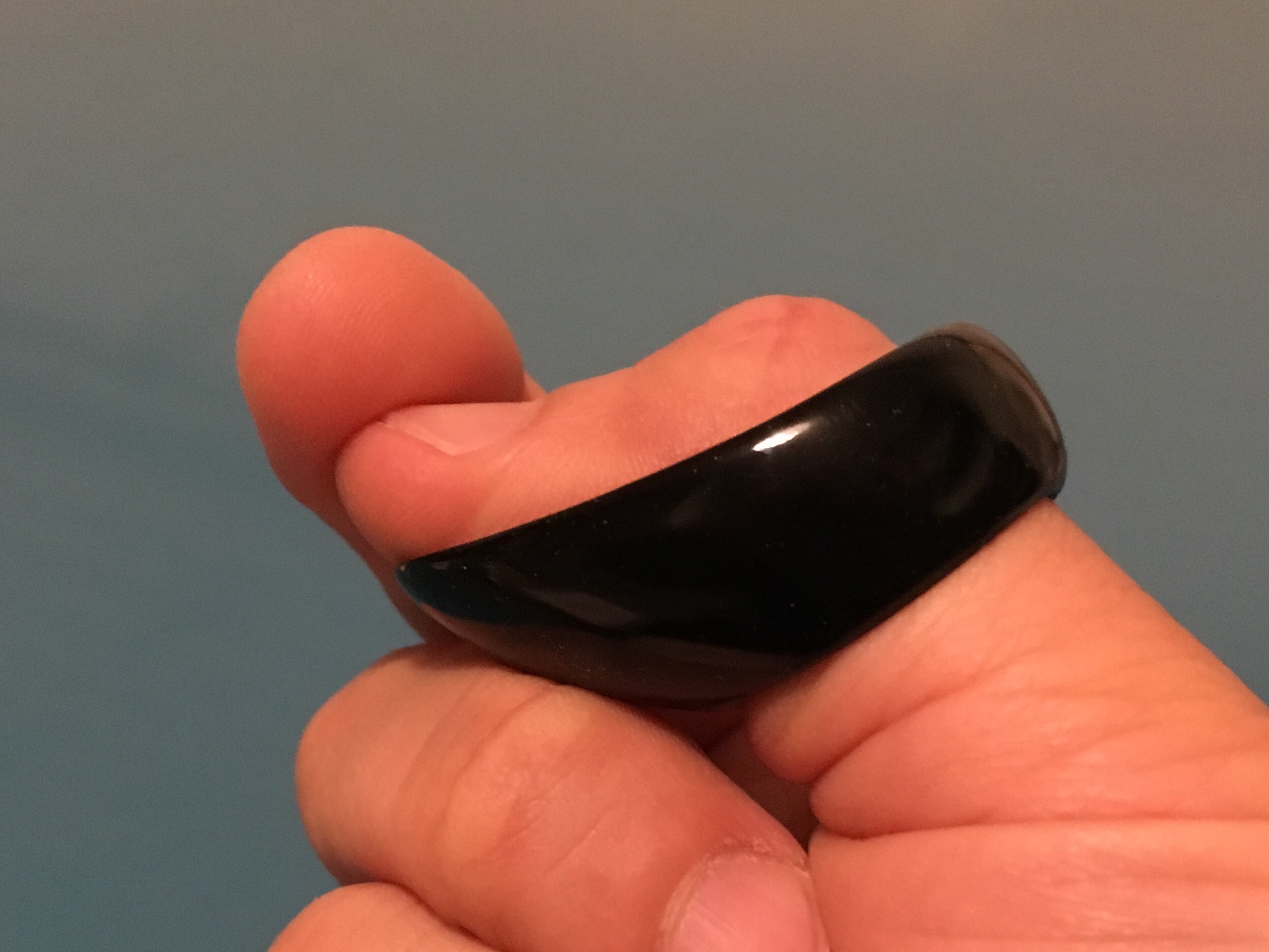

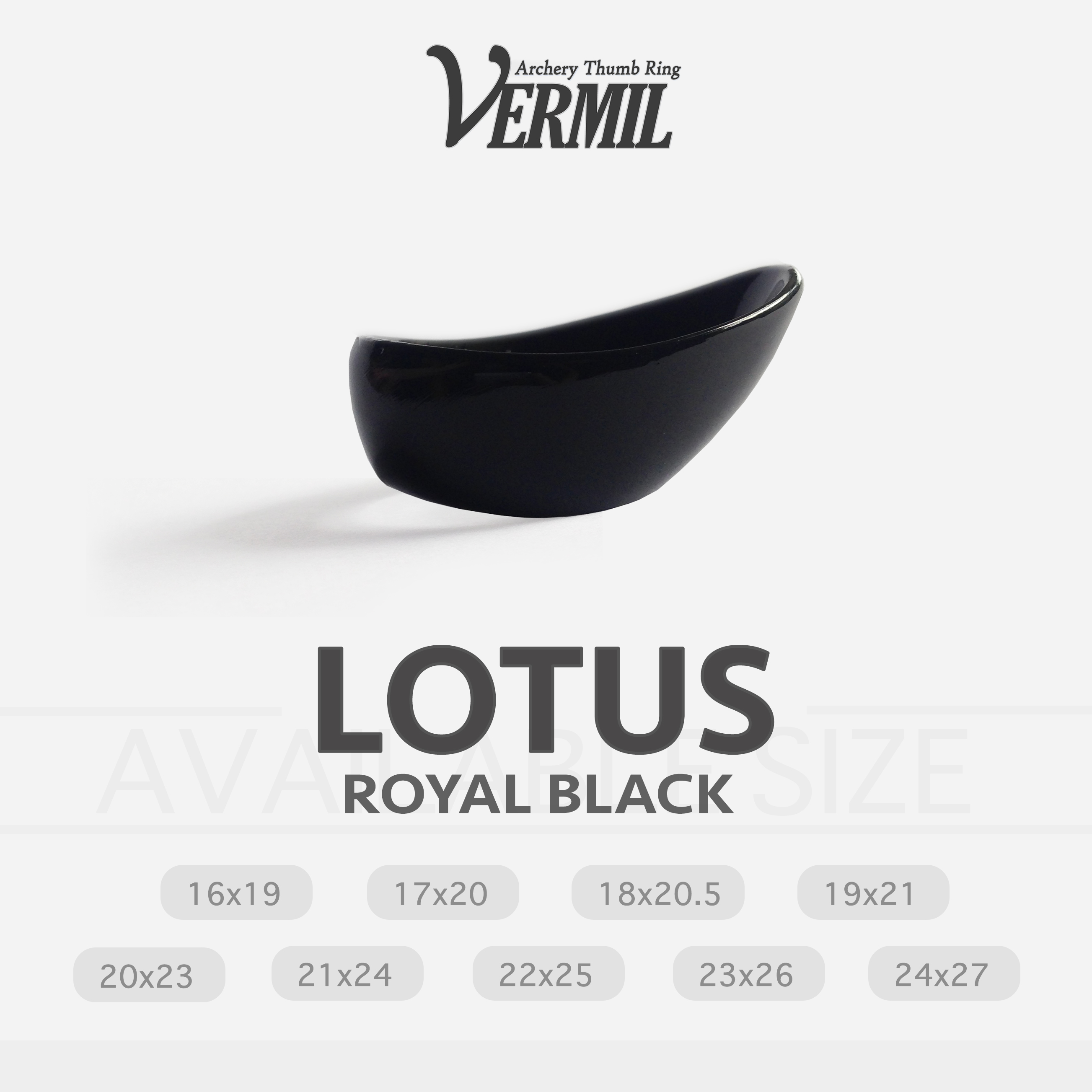

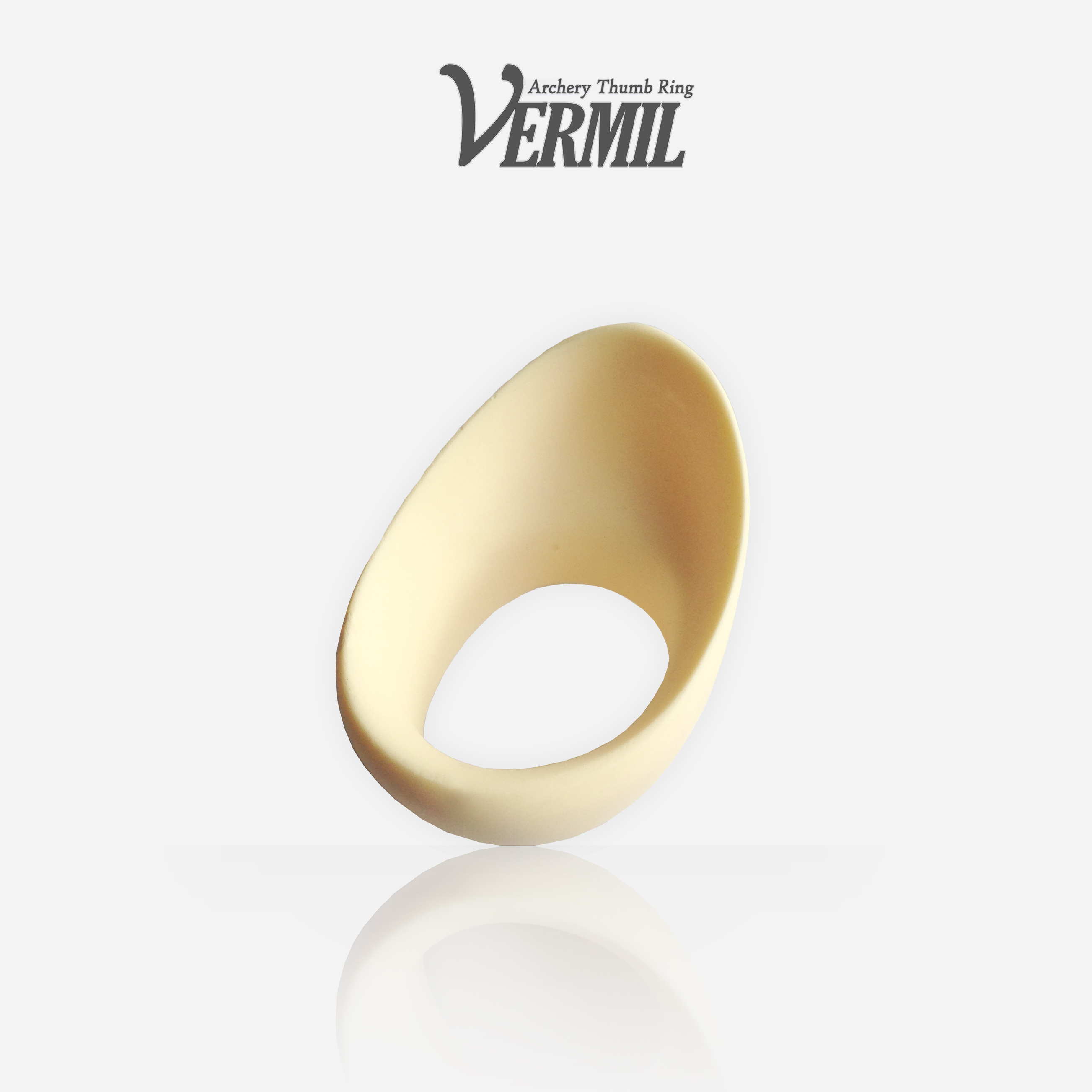

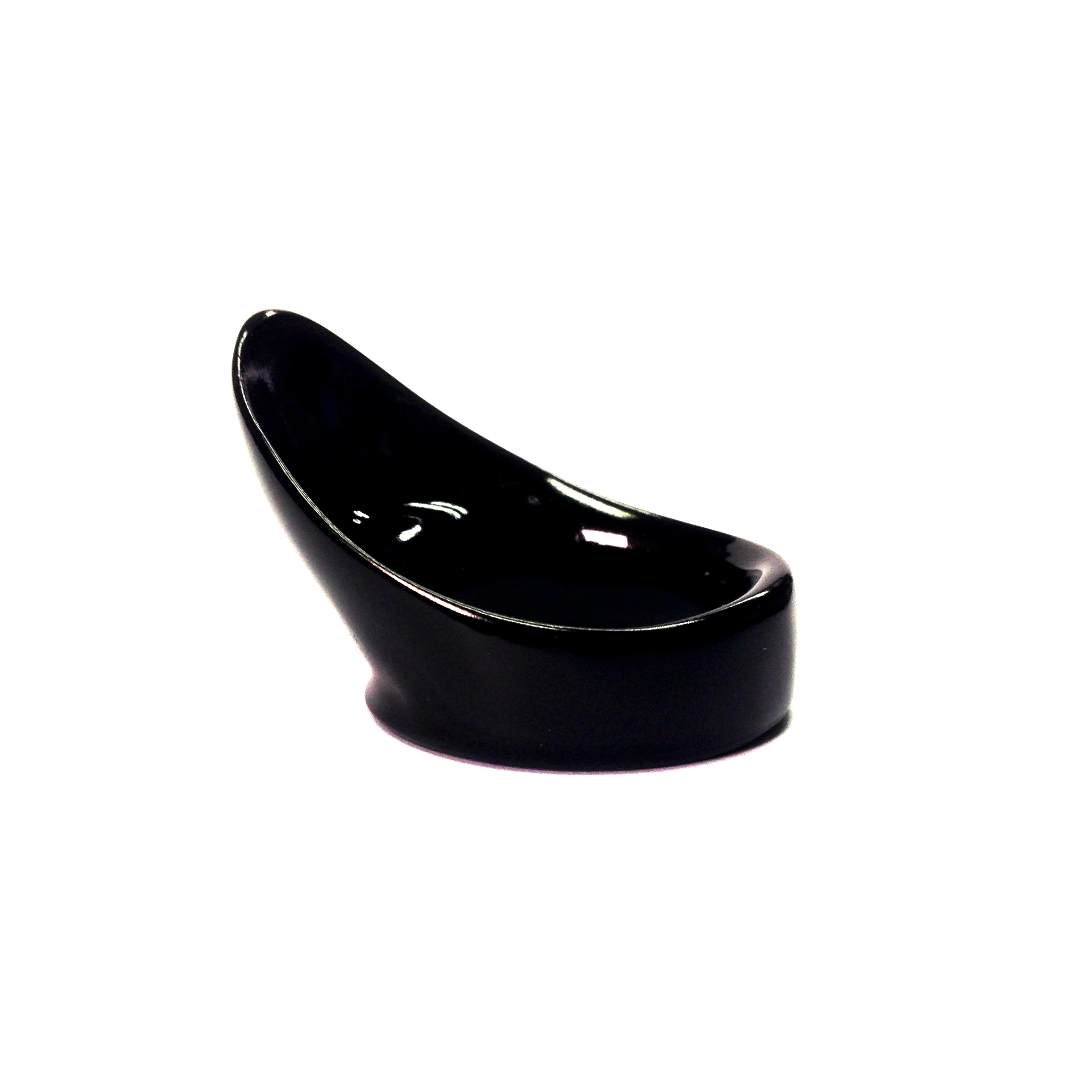

Vermil Lotus II

The Lotus II is an updated version of the original Lotus and features a revised string ledge angle. It is great for archers who prefer the simplicity of rings without a string guard. As you pull, place the string at the bottom edge of the lip just outside the eye (opening) of the ring.

Materials/Colors: Resin (Black, Ivory)
Price: $15 per ring
Shipping: $6, small flat-rate box within USA (International: starts at $7 for 2-ounce padded envelope)


Resin Lotus II Sizes
Opening width x length
Size 15
15 mm x 18 mm
Size 16
16 mm x 19 mm
Size 17
17 mm x 20 mm
Size 18
18 mm x 20.5 mm
Size 19
19 mm x 21 mm
Size 20
20 mm x 23 mm
Size 21
21 mm x 24 mm
Size 22
22 mm x 25 mm
Size 23
23 mm x 26 mm
Size 24
24 mm x 27 mm

(Note: size tolerance is +/- 0.5mm.)


Vermil Classic

Vermil's original design features a solid string guard for comfort and protection. Great for learning. Rest the string between the lip and guard, and make sure you don't hook your thumb too far around the string.

Materials/Colors: Resin (Black, Red, Green, Blue, Ivory)
Price (Resin): $15 per ring
Shipping: $6, small flat-rate box within USA (International: starts at $7 for 2-ounce padded envelope)


Resin Classic Sizes
Opening width x length
Size 15
15 mm x 18 mm
Size 16
16 mm x 19 mm
Size 17
17 mm x 20 mm
Size 18
18 mm x 20.5 mm
Size 19
19 mm x 21 mm
Size 20
20 mm x 23 mm
Size 21
21 mm x 24 mm
Size 22
22 mm x 25 mm
Size 23
23 mm x 26 mm
Size 24
24 mm x 27 mm

(Note: size tolerance is +/- 0.5mm.)

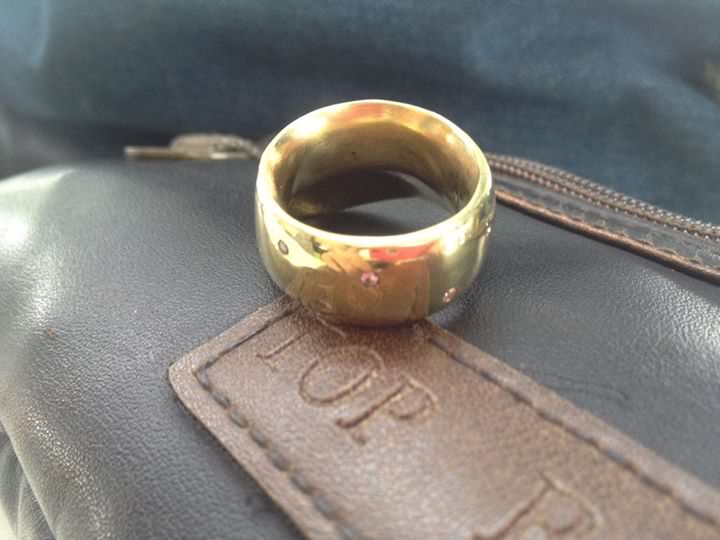

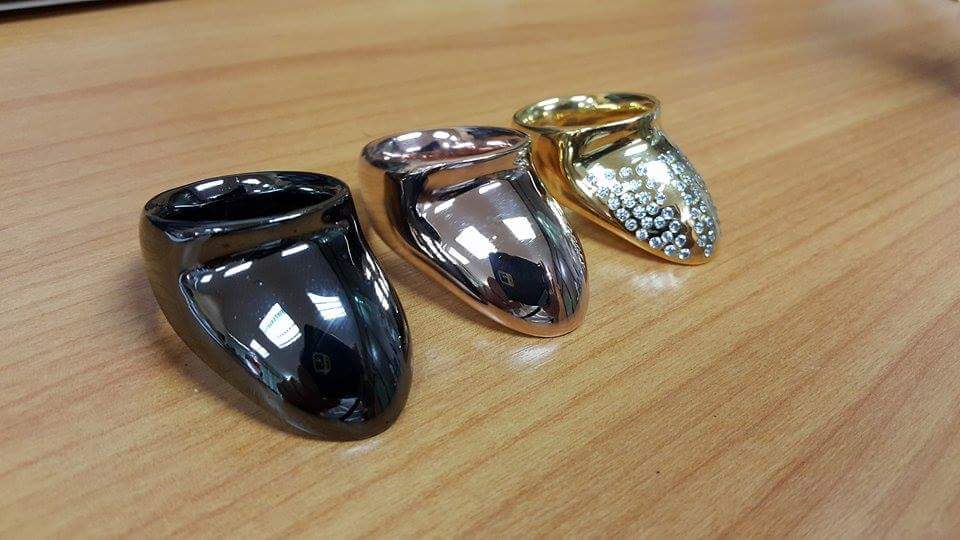

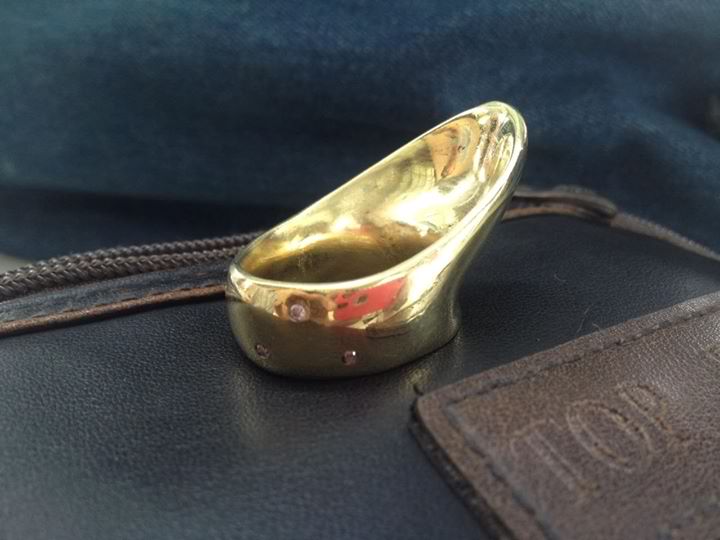

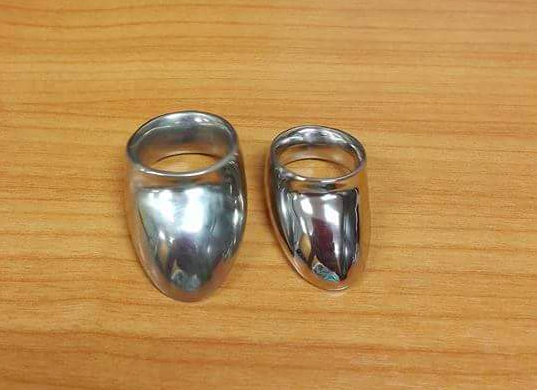

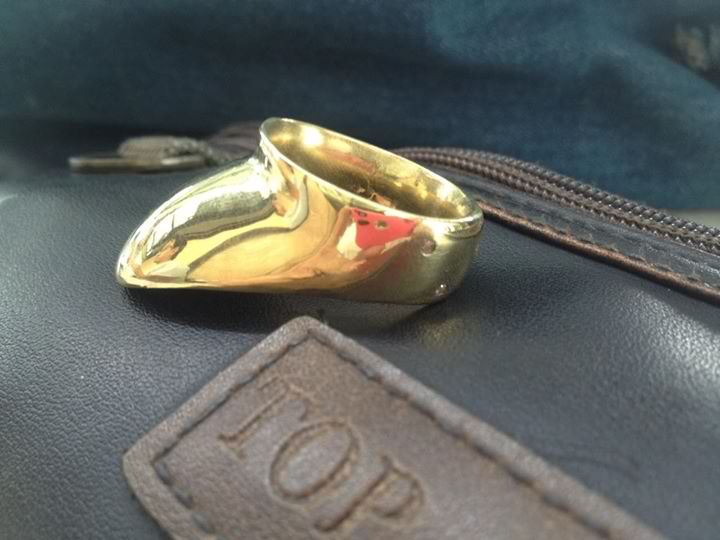

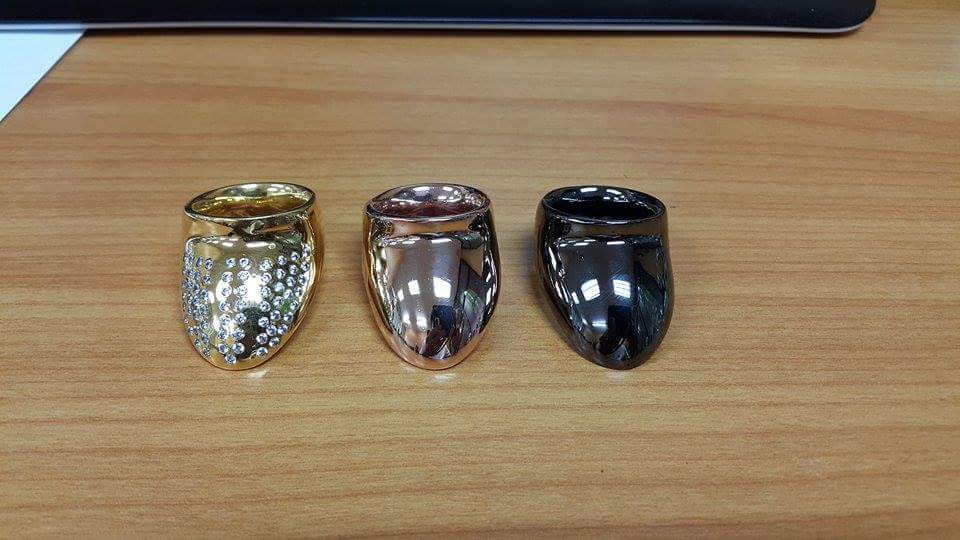

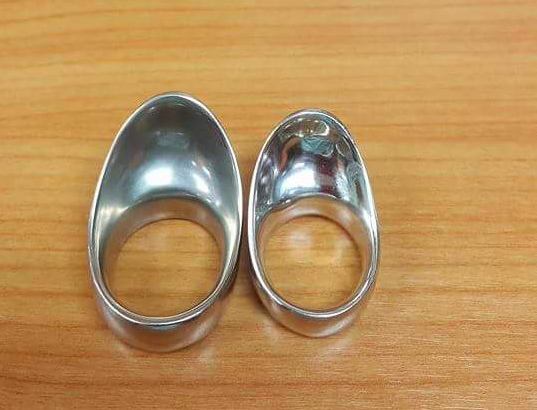

Metal Vermil Classic

Vermil's original design is now available in metal. Note that the sizes of the opening are somewhat different from the Vermil resin ring sizes, so please measure carefully and consult the chart below.

Materials: Brass ($35), Bronze ($40), Silver+ ($45)
Shipping: $6, small flat-rate box within USA (International: starts at $7 for 2-ounce padded envelope)


Metal Classic Sizes
Opening width x length
Size 15
15 mm x 18 mm
Size 16
16.5 mm x 19.5 mm
Size 17
17.5 mm x 20 mm
Size 18
18.5 mm x 21.5 mm
Size 19
19.5 mm x 22.5 mm
Size 20
20.5 mm x 23.5 mm
Size 21
21.5 mm x 24.5 mm
Size 22
22.5 mm x 26 mm
Size 23
23.5 mm x 27 mm

(Note: size tolerance is +/- 0.3mm.)


Measurement


How to Use the Rings

How to Use the Archer's Thumb Ring

Gao Ying's Double-Hook Thumb Draw


Notice on Modifying the Vermil Resin Ring: These rings are easy to customize using a file or sandpaper. You should wear breathing protection when modifying the ring. Do not attempt to melt the ring --- instead, if you find the ring too tight or too loose, please send the ring back to us for an exchange, or contact us for advice on how to adjust it.


King of Rui's Thumb Ring (by Jinxian Archery)

We are proud to be the exclusive North American reseller for the King of Rui's Thumb Ring (made by Jinxian Archery). The 《春秋·芮夬》(chun qiu rui guai, as it is pronounced in Mandarin Chinese) is a brass replica of the original gold ring belonging to the King of the State of Rui (芮) from the Spring-Autumn Period (771--476 BCE). Now, the rebirth of this lost relic from more than two thousand years ago can be yours to own and cherish. The King of Rui's Ring is both a work of art and a fully functional piece of archery equipment.

Materials: Brass
Price: $99
Shipping: Please inquire.

Sizes (Inner diameter)
XS (15 mm x 18.5 mm)
S (16 mm x 20 mm)
M (18 mm x 21 mm)
L (20 mm x 23 mm)
XL (21 mm x 26 mm)
Note: Because these rings are finished by hand, the dimensions of the final product could deviate slightly from the specifications. Thank you for your understanding!

Description and How to Use
"Guai (夬)" is the ancient name for the archer’s thumb ring in China. The original ring was excavated from the State of Rui Mausoleum located in present-day Lingdai Village, Hancheng, Shaanxi Province. It has features unique to the era which make it stand out compared to other rings used throughout Chinese history. [Following two photos are of the original museum ring upon which the King of Rui Ring replica is based.]

Side prong: This short prong is used for securing the arrow. Let the prong touch the left side of the arrow shaft while your draw hand index finger touches the right side of the shaft. This prevents the arrow from slipping off the string.

Wedge: Located at the bottom of the front of the ring, the base of the wedge is used to hook the string.

Lip: The lip at the top of the front of the ring is designed to provide the thumb comfort while drawing the string.

Eagle's Head: The rear of the ring resembles an Eagle's head, with top-rear being the Eagle's beak, and the bottom-rear forming the Eagle's eyes. The shapes serves a functional (as well as artistic) purpose, as you can tie the small threads of the Wrist Rope through the Eagle's eyes.

Optional Accessories and Adjustments
Wrist Rope: You can choose the Long Rope or the Short Rope depends on the size of your wrist. The small threads are fastened to the Eagle's eyes at the back of the ring. The rest is fastened around your wrist. This setup allows you to distribute the pressure between two locations (thumb and wrist), so that the thumb does not have to bear all the pressure alone. This is a different operating principle compared to rings from later eras.

Leaf of Wanlan: Also known as "She (韘)" because this leather lining (which can be added at the front-inside of the ring) is shaped like a leaf.

Grip Tape: When applied to the interior of the ring, it helps prevent the ring from slipping.

Sandpaper: You can use sandpaper to adjust the interior dimensions. Start with the coarse 180-grit sandpaper, then finish with the fine 1000-grit sandpaper. (Remember to wear breathing protection!)
